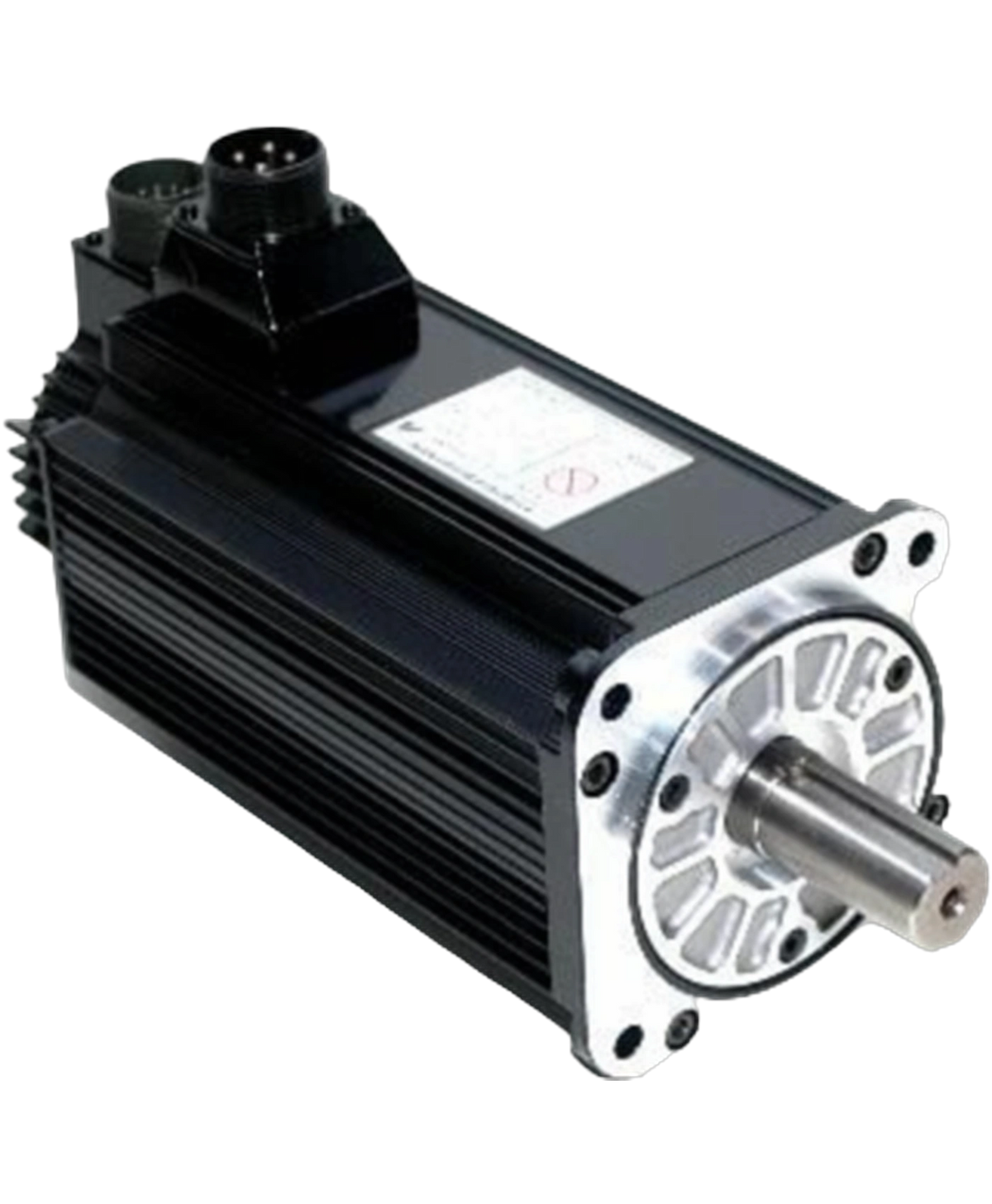

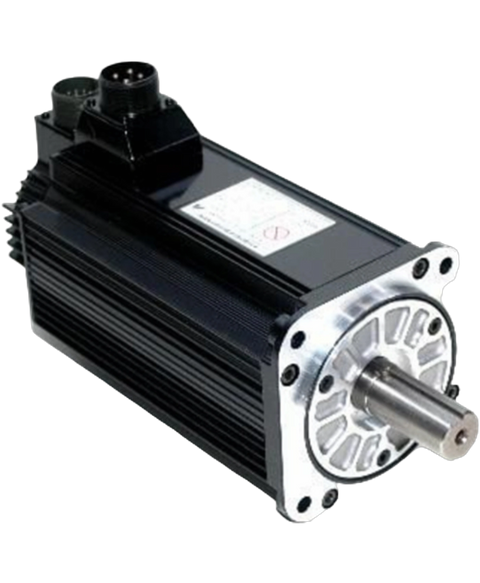

Yaskawa SGMS-50A6AB
The Yaskawa SGMS-50A6AB is a permanent magnet AC servomotor designed for high-efficiency applications. With a continuous power capacity of 5.0 kW, this motor achieves a nominal speed of 3000 RPM and can reach a maximum transient speed of 4500 RPM.
This Yaskawa SGMS-50A6AB is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805453857.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Yaskawa |
| Product Type | Permanent Magnet AC Servomotor |
| Product Line | Sigma II |
| Part Number | SGMS-50A6AB |
| Weight | 36.63 lbs (16.61 kg) |
| Series | AC Motors |
| Continuous Power Rating | 5.0 kW |
| Nominal Operating Speed | 3000 RPM |
| Maximum Transient Speed | 4500 RPM |
| Continuous Torque Output | 15.8 N·m (161 kgf·cm / 140 lb·in) |
| Peak Torque Capacity | 47.6 N·m (486 kgf·cm / 422 lb·in) |
| Torque-to-Current Ratio | 0.61 N·m/A (6.2 kgf·cm/A) |
| Rotor Inertia | 12.3 x 10⁻³ kg·m² (12.6 gf·cm·s²) |
| Continuous Current Demand | 28.2 A (RMS) |
| Maximum Short-Term Current | 84 A (RMS) |
| Standard Encoder Type | Incremental Optical Encoder |
| Encoder Pulse Resolution | 4096 Pulses Per Revolution (PPR) |
| Environmental Protection Rating | IP67 (Shaft Seal Optional) |
| Electrical Insulation Class | Class F |
| Thermal Management | Totally Enclosed, Self-Cooled with Optional External Heat Sink Compatibility. |
| Brand | Yaskawa |
