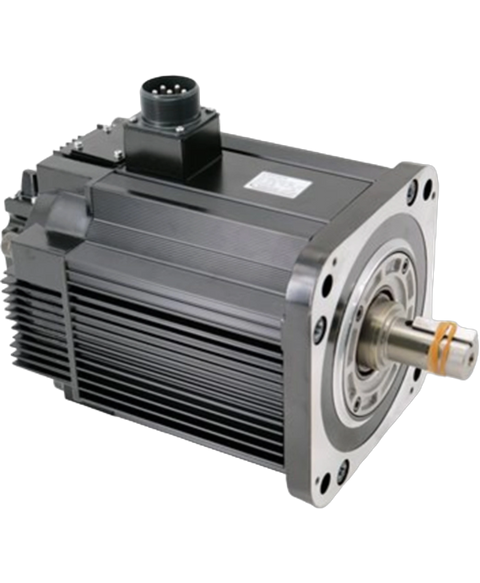

Yaskawa SGMRS-37A2A-YR11
The Yaskawa SGMRS-37A2A-YR11 is a high-performance servo motor belonging to the Sigma III series, optimized for precision applications. This motor boasts a rated output power of 3.7 kilowatts and operates efficiently at a maximum speed of 1,500 RPM.
This Yaskawa SGMRS-37A2A-YR11 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805427504.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Yaskawa |
| Product Type | Servo motor |
| Product Line | Sigma III |
| Part Number | SGMRS-37A2A-YR11 |
| Weight | 25.88 lbs (11.74 kg) |
| Rated Output | 3.7 kilowatts |
| Motor Speed | 1,500 revolutions per minute (RPM) |
| Drive Method | Direct drive |
| Insulation Class | Class B |
| Rated Current | 23.6 Amperes |
| Ambient Operating Temperature | 0 to 40°C (in a non-condensing environment) |
| Storage Temperature | 20 to 80°C (in a non-condensing environment) |
| Supply Voltage Class | 200 Volts AC |
| Mounting Method | Flange mount |
| Rated Torque | 23.5 Newton-meter |
| Network Phase Type | 3-phase |
| Supply Frequency | 50 to 60 Hertz |
| Withstand Voltage | 1,500 Volts AC |
| Excitation Method | Permanent magnet |
| Brand | Yaskawa |
