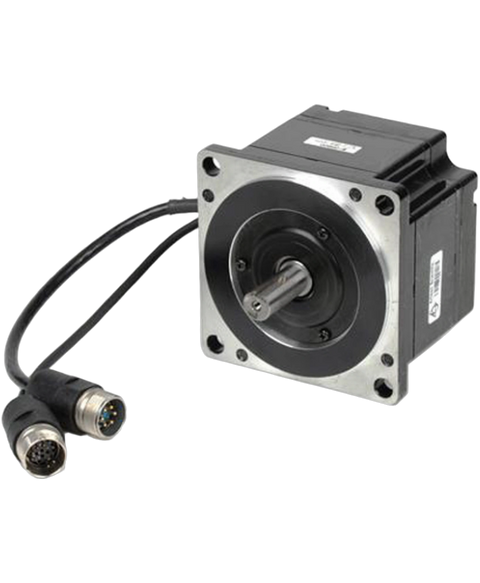

Yaskawa SGMPH-08AAE41D
The Yaskawa SGMPH-08AAE41D AC servo motor is designed for precision performance. With a rated power of 0.75 kW and an operating voltage of 230 V AC, this motor operates efficiently. It achieves speeds of up to 3000 RPM and provides impressive torque ratings of 2.39 Nm.
This Yaskawa SGMPH-08AAE41D is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805310614.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Yaskawa |
| Product Line | SG Series |
| Part Number | SGMPH-08AAE41D |
| Weight | 10.69 lbs (4.85 kg) |
| Product | AC Servo Motor |
| Power Rating | 0.75 kW |
| Voltage Rating | 230 V |
| Voltage Type | AC |
| Shaft End | Straight with Key |
| Brake | No |
| Speed | 3000 RPM |
| Torque Rating | 2.39 Nm |
| Current Rating | 4.1 A |
| Maximum Ambient Temperature | 60 degrees Celsius |
| Minimum Ambient Temperature | 0 degrees Celsius |
| Maximum Humidity for Operation | 80% RH (non-condensing) |
| Maximum Humidity for Storage | 80% RH (non-condensing) |
| Maximum Operating Altitude | 1000 meters above sea level |
| Brand | Yaskawa |
