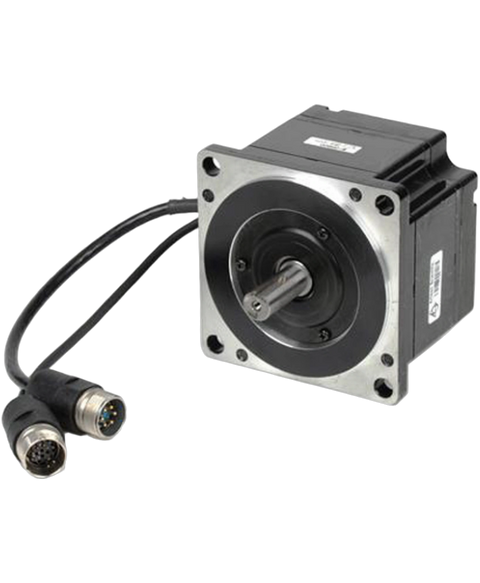

Yaskawa SGMPH-08AAA41
The Yaskawa SGMPH-08AAA41 is a servo motor within the SG Series that delivers a rated power output of 0.75 kW. This motor operates on a three-phase AC voltage of 200 V and features a 13-bit incremental encoder for precise operation.
This Yaskawa SGMPH-08AAA41 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26858410391.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Yaskawa |
| Product Type | Servo Motor |
| Product Line | SG Series |
| Part Number | SGMPH-08AAA41 |
| Weight | 10.00 lbs (4.54 kg) |
| Rated Power Output | 0.75 kW (750 W) |
| Power Supply Voltage | Three-phase AC 200 V |
| Encoder Type | 13-bit incremental encoder (standard) |
| Shaft Configuration | Straight shaft with keyway |
| Mounting Style | Flange-mounted |
| Thermal Class | Class B insulation |
| Enclosure Protection | Totally enclosed, self-cooled, IP55 |
| Ambient Humidity Range | 20% to 80% (non-condensing) |
| Drive Method | Direct drive |
| Rated Speed | 3000 rpm |
| Vibration Resistance | V15 vibration level |
| Insulation Resistance | DC 500 V, 10 MΩ or higher |
| Ambient Temperature Range | 0°C to 40°C |
| Brand | Yaskawa |
