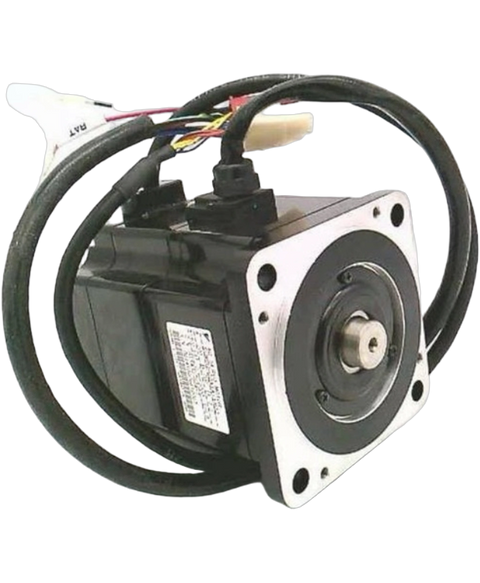

Yaskawa SGMPH-02A2A-YR12
The SGMPH-02A2A-YR12 is a precise AC servo motor from Yaskawa's SG Series, ideal for applications requiring high efficiency. It boasts a rated power of 200 watts and operates at 200 volts, drawing a current of 2.0 amps while delivering robust torque.
This Yaskawa SGMPH-02A2A-YR12 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26846391813.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Yaskawa |
| Product Type | AC Servo Motor |
| Product Line | SG Series |
| Part Number | SGMPH-02A2A-YR12 |
| Weight | 2.31 lbs (1.05 kg) |
| Rated Power | 200 W |
| Rated Voltage | 200 V |
| Rated Current | 2.0 A |
| Maximum Torque | 0.637 N•m |
| Rated Speed | 3000 RPM |
| Encoder Type | Serial Encoder |
| Motor Type | Permanent Magnet |
| Inertia | Low |
| Mounting Configuration | Standard Flange |
| Shaft Type | Straight, Keyless |
| Rotation Direction | Bi-Directional |
| Brand | Yaskawa |
