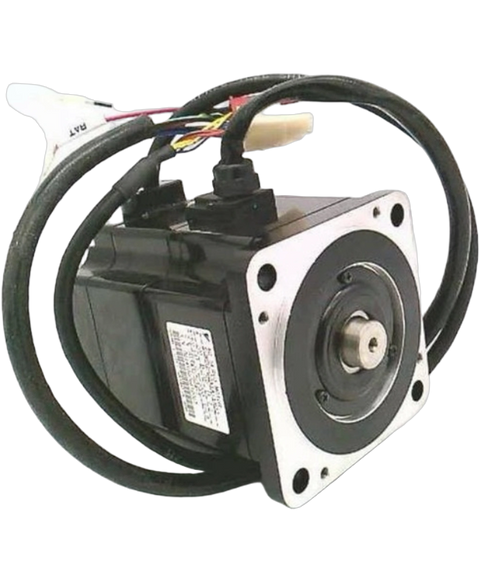

Yaskawa SGMPH-02A1A-YR32
The Yaskawa SGMPH-02A1A-YR32 is a versatile AC servo motor from the SG Series, designed with a cube-type construction. It operates at a rated speed of 2,000 RPM and can reach a maximum of 5,000 RPM, providing flexibility in various applications.
This Yaskawa SGMPH-02A1A-YR32 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805410183.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Yaskawa |
| Product Type | AC Servo Motor |
| Product Line | SG Series |
| Part Number | SGMPH-02A1A-YR32 |
| Weight | 5.06 lbs (2.30 kg) |
| Motor Type | Cube type motor |
| Rated Speed | 2,000 revolutions per minute (RPM) |
| Encoder Type | Absolute encoder |
| Supply Voltage Class | 230 Volts AC |
| Rated Output | 200 Watts |
| Torque Rating | 0.637 Newton-meter |
| Maximum Torque | 1.91 Newton-meter |
| Current Rating | 2 Amperes |
| Maximum Current | 6 Amperes |
| Power Capacity | 21 kilowatts per second |
| Ambient Operating Temperature | 0 to 40°C (in a non-condensing environment) |
| Encoder Resolution | 16-bit |
| Maximum Speed Rating | 5,000 revolutions per minute (RPM) |
| Insulation Class | Class B |
| Brand | Yaskawa |
