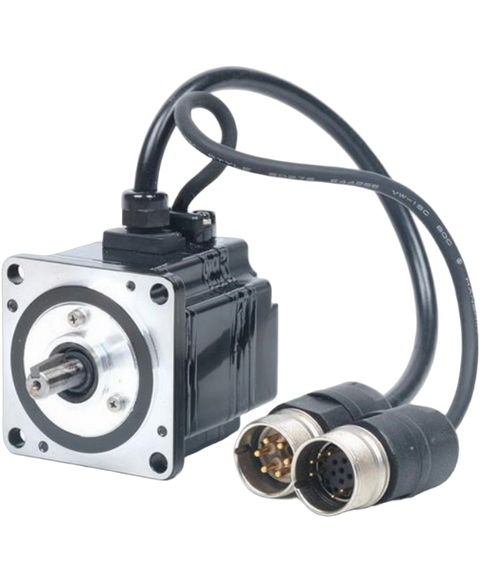

Yaskawa SGMPH-01AAE4SD
The Yaskawa SGMPH-01AAE4SD, a servo motor from the SG series, delivers precise AC voltage operations. It is rated for 200V AC with a power output of 100W, achieving a rated speed of 3000 RPM and a peak speed of 5000 RPM.
This Yaskawa SGMPH-01AAE4SD is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805413504.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Yaskawa |
| Product Type | Servo Motor |
| Product Line | SG Series |
| Part Number | SGMPH-01AAE4SD |
| Weight | 1.75 lbs (0.79 kg) |
| Voltage Type | AC |
| Voltage Rating | 200V AC |
| Rated Power | 100W |
| Current | 0.91 Amps |
| Torque | 0.318 Nm |
| Rated Speed | 3000 RPM |
| Maximum Speed | 5000 RPM |
| Mounting Option | Flange |
| Encoder | Incremental |
| Shaft | Straight Shaft |
| Shaft Key | Included |
| Oil Seal | Included |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | 0°C to 50°C |
| Brand | Yaskawa |
