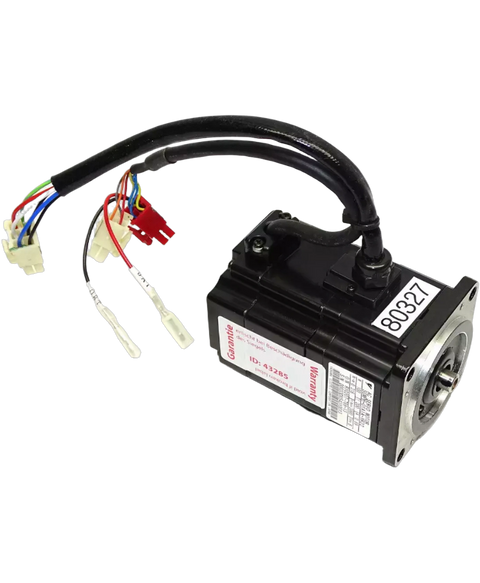

Yaskawa SGMPH-01A1A-YR22
The Yaskawa SGMPH-01A1A-YR22 is designed as an AC servo motor with a power capacity of 100 W. It operates efficiently at a voltage of 200 V and can handle a current of 0.89 A while providing a torque of 0.318 Nm. The motor can reach speeds up to 3000 RPM, making it suitable for various applications requiring rapid motion.
This Yaskawa SGMPH-01A1A-YR22 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805638267.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Yaskawa |
| Product Line | SG Series |
| Part Number | SGMPH-01A1A-YR22 |
| Weight | 2.31 lbs (1.05 kg) |
| Product | AC Servo Motor |
| Power Rating | 100 W |
| Voltage Rating | 200 V |
| Current Rating | 0.89 A |
| Torque Rating | 0.318 Nm |
| Speed | 3000 RPM |
| Insulation Class | B |
| Maximum Ambient Temperature | 60 degrees Celsius |
| Minimum Ambient Temperature | 0 degrees Celsius |
| Operating Humidity | 80% non-condensing RH |
| Storage Humidity | 80% non-condensing RH |
| Maximum Operating Altitude | 1000 m above sea level |
| Brand | Yaskawa |
