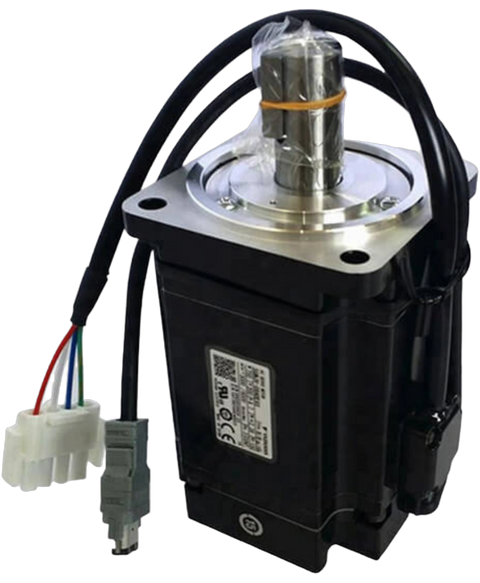

Yaskawa SGMJV-08ADE6S
Yaskawa's SGMJV-08ADE6S is a motor within the Sigma 5 series, operating at a voltage rating of 200V AC. It features a rated speed of 3000 RPM while delivering 0.85 kW of power and a torque of 2.7 Nm, suitable for various industrial applications.
This Yaskawa SGMJV-08ADE6S is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805669536.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Yaskawa |
| Product Line | Sigma 5 |
| Part Number | SGMJV-08ADE6S |
| Weight | 5.00 lbs (2.27 kg) |
| Voltage Rating | 200V AC |
| Rated Speed | 3000 RPM |
| Rated Power | 0.85 kW |
| Rated Torque | 2.7 Nm |
| Encoder Type | Absolute 20-bit |
| Cooling Method | Natural Convection |
| Mounting Type | Flange Mount |
| Protection Rating | IP65 |
| Shaft Type | Straight with Keyway |
| Vibration Resistance | 2 g at 10-500 Hz |
| Temperature Range | 0°C to 40°C |
| Overload Capacity | 250% for 3 seconds |
| Communication Interface | Serial |
| Brand | Yaskawa |
