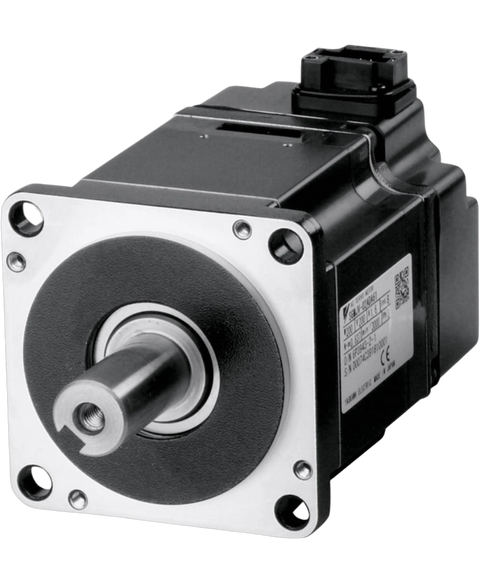

Yaskawa SGMJV-04ADA61
The Yaskawa SGMJV-04ADA61 is a rotary servo motor that delivers a continuous power rating of 400 W. It produces a nominal torque of 1.27 N·m and can achieve a peak torque of 4.46 N·m.
This Yaskawa SGMJV-04ADA61 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26868516237.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Yaskawa |
| Product Line | Sigma 5 |
| Part Number | SGMJV-04ADA61 |
| Weight | 1.56 lbs (0.71 kg) |
| Product Category | Rotary Servo Motor |
| Continuous Power Rating | 400 W |
| Nominal Torque | 1.27 N·m |
| Peak Torque Capacity | 4.46 N·m |
| Standard Operating Speed | 3000 min⁻¹ |
| Maximum Rotational Speed | 6000 min⁻¹ |
| Normal Operating Current | 2.7 A |
| Peak Current | 9.3 A |
| Torque Sensitivity | 0.512 N·m/A |
| Rotor Inertia | 0.442 ×10⁻⁴ kg·m² |
| Input Voltage Requirement | 200 V AC |
| Protection Level | IP65 (excluding shaft opening) |
| Thermal Classification | Class B |
| Mounting Configuration | Flange type |
| Brand | Yaskawa |
