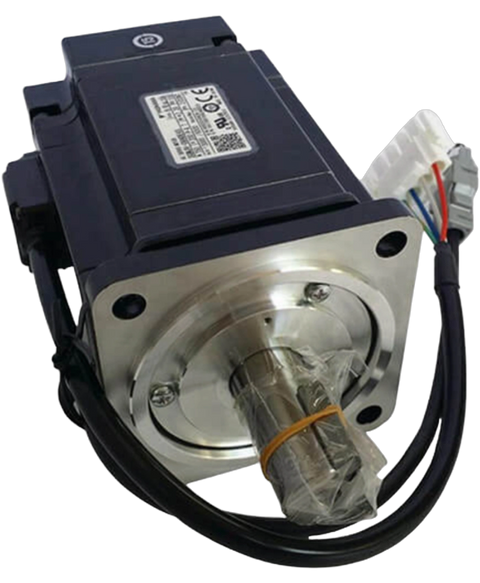

Yaskawa SGMJV-04AAA61
The Yaskawa SGMJV-04AAA61 servo motor offers 200 VAC operation. It is classified as a brushless rotary motor designed for medium inertia applications, with a rated output of 400 watts.
This Yaskawa SGMJV-04AAA61 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805435845.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Yaskawa |
| Product Line | SG Series |
| Part Number | SGMJV-04AAA61 |
| Weight | 5.00 lbs (2.27 kg) |
| Product Name | Servo Motor |
| Voltage | 200 VAC |
| Encoder | 13-bit incremental |
| Shaft End | Straight with key and tap |
| Oil Seal | No |
| Brake | No |
| Servo Motor Type | Brushless Rotary |
| Classification | Medium Inertia, Small Capacity |
| Rated Output | 400 Watts |
| Rated Torque | 1.27 Nm |
| Peak Torque | 4.46 Nm |
| Rated Speed | 3000 RPM |
| Max. Speed | 6000 RPM |
| Rotary Inertia (absolute encoder with battery) | 0.442 x10E-4 kg-m² |
| Rotary Inertia (battery-less absolute encoder) | 0.506 x10E-4 kg-m² |
| Brand | Yaskawa |
