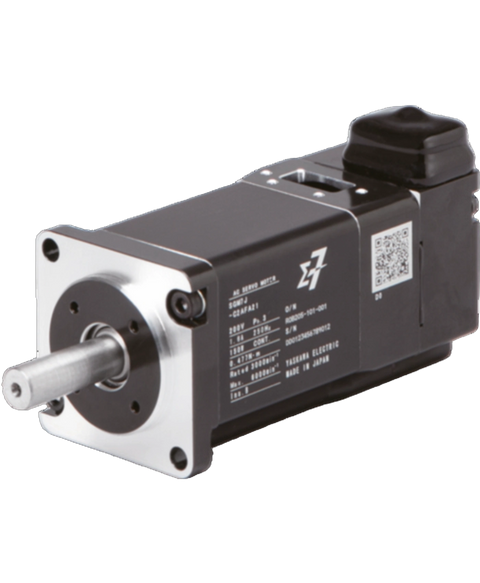

Yaskawa SGMJV-04A3M6C
The SGMJV-04A3M6C model from Yaskawa is an AC servo motor designed to deliver efficient performance in various applications. With a compact size and robust features, this motor operates effectively at a power rating of 400 watts.
This Yaskawa SGMJV-04A3M6C is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805288723.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Yaskawa |
| Product Line | Sigma 5 |
| Part Number | SGMJV-04A3M6C |
| Weight | 3.94 lbs (1.79 kg) |
| Name | AC Servo Motor |
| Power Rating | 400 W |
| Rated Voltage | 200 V AC |
| Rated Current | 2.1 A |
| Rated Speed | 3000 RPM |
| Rated Torque | 1.27 Nm |
| Maximum Torque | 3.81 Nm |
| Peak Torque | 5.41 Nm |
| Inertia | 0.027 kg·m² |
| Feedback Type | Absolute Encoder |
| Feedback Resolution | 17 bits |
| Motor Frame Size | 60 mm |
| Number of Poles | 4 |
| Motor Length | 128 mm |
| Service Life | Over 20,000 hours |
| Brand | Yaskawa |
