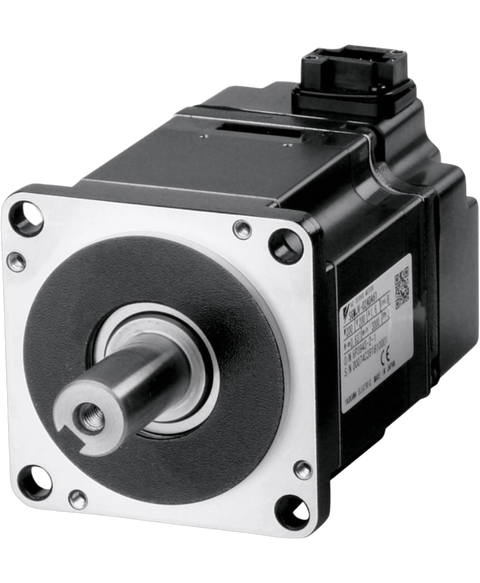

Yaskawa SGMJV-02AAA61
The Yaskawa SGMJV-02AAA61 is an AC servo motor featuring a 200 W power output. It operates with an input voltage of 200 V, achieving a rated speed of 3000 RPM and delivering a rated torque of 0.637 Nm.
This Yaskawa SGMJV-02AAA61 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26868181023.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Yaskawa |
| Product Line | Sigma 5 |
| Part Number | SGMJV-02AAA61 |
| Weight | 2.00 lbs (0.91 kg) |
| Product Description | AC Servo Motor |
| Power Rating | 200 W |
| Input Voltage | 200 V |
| Rated Torque | 0.637 Nm |
| Rated Speed | 3000 RPM |
| Motor Type | Brushless Rotary Servo Motor |
| Resolution | 13-bit (8192 pulses per revolution) |
| Mounting Type | Flange mounting |
| Frame Size | 80 x 80 mm |
| Operating Temperature Range | 0°C to +40°C |
| Storage Temperature Range | -20°C to +60°C |
| Compliance | CE certified, RoHS compliant |
| Brand | Yaskawa |
