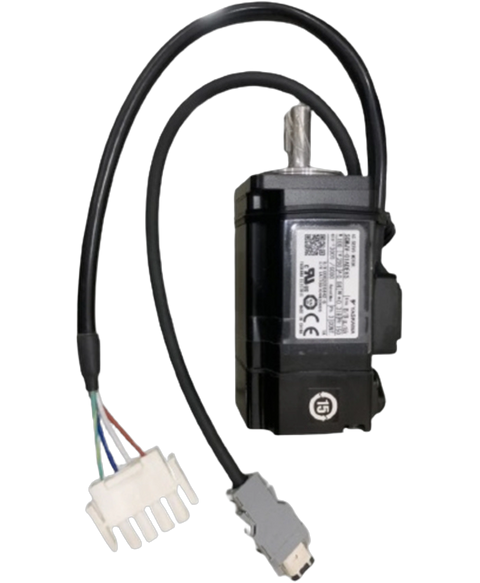

Yaskawa SGMJV-01ADE6S
The Yaskawa SGMJV-01ADE6S is a precise rotary servo motor part of the Sigma 5 series, delivering a rated output of 100 W. This unit is engineered for applications that require reliable performance with a continuous torque of 0.318 N·m and a peak torque of 1.11 N·m.
This Yaskawa SGMJV-01ADE6S is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26870621887.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Yaskawa |
| Product Type | Rotary Servo Motor |
| Product Line | Sigma 5 |
| Part Number | SGMJV-01ADE6S |
| Weight | 4.00 lbs (1.81 kg) |
| Rated Output | 100 W |
| Continuous Torque | 0.318 N·m |
| Peak Torque | 1.11 N·m |
| Nominal Speed | 3000 min⁻¹ |
| Maximum Rotational Speed | 6000 min⁻¹ |
| Rated Current Draw | 0.84 Arms |
| Maximum Current Draw | 2.9 Arms |
| Torque Constant | 0.413 N·m/Arms |
| Rotor Moment of Inertia | 0.0000665 kg·m² |
| Operating Voltage | 200 V |
| Thermal Classification | Class B |
| Protection Rating | IP65 (excluding shaft area) |
| Installation Method | Flange Mounting |
| Cooling Type | Fully Enclosed, Natural Cooling |
| Brand | Yaskawa |
