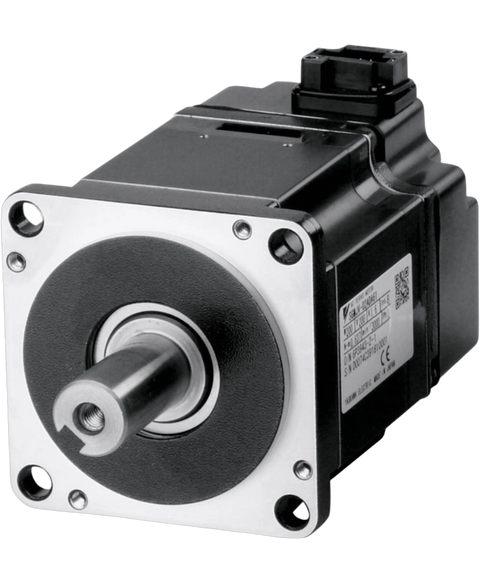

Yaskawa SGMJV-01ADA61
The Yaskawa SGMJV-01ADA61 is a brushless servo motor designed for efficient operation in various applications. It features a supply voltage of 200V AC and operates efficiently with a nominal current of 0.84 Amps, reaching a maximum current of 2.9 Amps.
This Yaskawa SGMJV-01ADA61 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805289249.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Yaskawa |
| Product Type | Brushless Servo Motor |
| Product Line | Sigma 5 |
| Part Number | SGMJV-01ADA61 |
| Weight | 10.00 lbs (4.54 kg) |
| Shaft | Keyed and Center-Tapped Shaft |
| Encoder | Incremental |
| Inertia | Medium Inertia |
| Supply Voltage | 200V AC |
| Nominal Current | 0.84 Amps |
| Maximum Current | 2.9 Amps |
| Active Power | 100 Watts |
| Rated Speed | 3000 RPM |
| Maximum Speed | 6000 RPM |
| Rated Torque | 0.318 Nm |
| Flange Mounting | Supported |
| IP Rating | IP65 |
| Operating Temperature | 0 to 40 degrees Celsius |
| Insulation Material | Thermal Class B Material |
| Brand | Yaskawa |
