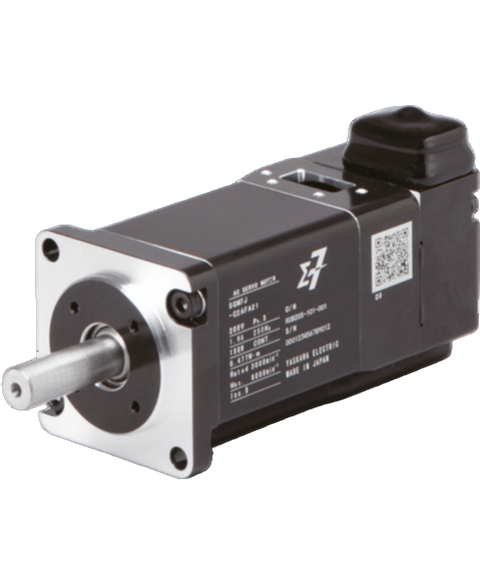

Yaskawa SGMJV-01A3A61
The Yaskawa SGMJV-01A3A61 is a servo motor from the Sigma 5 series, delivering reliable performance with a rated output power of 100 watts. It features a high speed capability of 6000 rpm and is equipped with robust protection rated at IP55, making it suitable for various industrial applications.
This Yaskawa SGMJV-01A3A61 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26868489666.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Yaskawa |
| Product Type | Servo Motor |
| Product Line | Sigma 5 |
| Part Number | SGMJV-01A3A61 |
| Weight | 0.50 lbs (0.23 kg) |
| Rated Output Power | 100 W |
| Rated Torque | 0.318 N·m |
| Maximum Speed | 6000 rpm |
| Rated Speed | 3000 rpm |
| Rotor Inertia | 0.0665 × 10⁻⁴ kg·m² |
| Peak Torque | 350% of the rated torque |
| Feedback | High-resolution serial encoder (options of 13-bit and 20-bit) |
| Power Supply Voltage | 200V AC |
| Protection Class | IP55 (dust and water-resistant) |
| Ambient Operating Temperature | 0°C to +40°C |
| Storage Temperature | -20°C to +85°C |
| Vibration Resistance | 4.9 m/s² |
| Mounting | Flange-mounted |
| Brand | Yaskawa |
