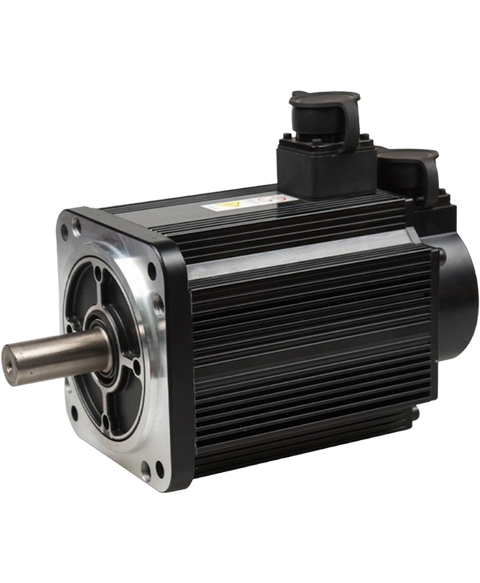

Yaskawa SGMGV-1AD3A61
The Yaskawa SGMGV-1AD3A61 is a medium-capacity brushless servo motor engineered for precision control in various applications. It delivers a rated output power of 11 kW while providing a rated torque of 70.4 Nm and an instantaneous peak torque of 166 Nm, achieving operational speeds up to 2000 rpm.
This Yaskawa SGMGV-1AD3A61 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26868348753.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Yaskawa |
| Product Line | Sigma 5 |
| Part Number | SGMGV-1AD3A61 |
| Weight | 115.00 lbs (52.16 kg) |
| Name of Module | Servo Motor |
| Component Type | Medium-Capacity Brushless Servo Motor |
| Rated Torque | 70.4 Nm |
| Instantaneous Peak Torque | 166 Nm |
| Rated Output Power | 11 kW |
| Rated Speed | 1500 rpm |
| Maximum Speed | 2000 rpm |
| Rated Current | 61.5A |
| Instantaneous Maximum Current | 147A |
| Rotor Inertia | 2.35 × 10⁻² kg·m² |
| Rated Angular Acceleration | 3000 rad/s² |
| Power Supply Voltage | 200V |
| Encoder Type | 20-bit Absolute Encoder |
| Protection Class | IP67 |
| Ambient Operating Temperature | 0°C to 40°C |
| Brand | Yaskawa |
