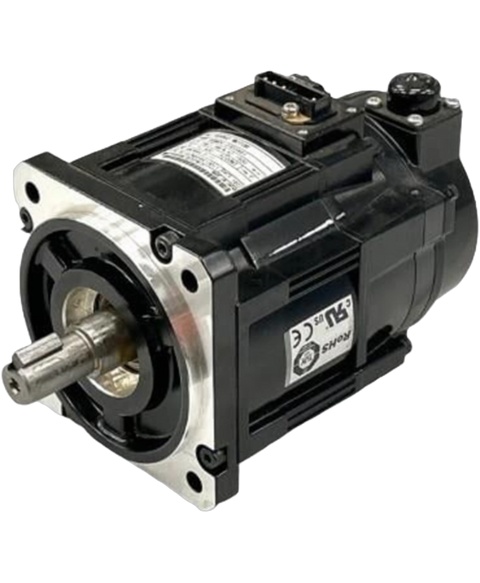

Yaskawa SGMGV-03A3A61
The Yaskawa SGMGV-03A3A61 is an AC servo motor with a rated output of 300 W and a maximum operational speed of 5000 rpm. It is designed for use in various applications requiring precision and reliability.
This Yaskawa SGMGV-03A3A61 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805539852.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Yaskawa |
| Product Line | Sigma 5 |
| Part Number | SGMGV-03A3A61 |
| Weight | 5.94 lbs (2.69 kg) |
| Type | AC Servo Motor |
| Rated Power | 300 W |
| Rated Speed | 3000 rpm |
| Rated Torque | 0.955 Nm |
| Maximum Speed | 5000 rpm |
| Rotor Inertia | 0.26 x 10⁻⁴ kg·m² |
| Voltage Rating | 200V AC |
| Encoder Type | 20-bit absolute |
| Protection Rating | IP65, IP67 |
| Depth | 60 mm |
| Length | 100 mm |
| Operating Temperature Range | 0°C to 40°C |
| Storage Temperature Range | -15°C to 70°C |
| Certifications | CE, UL, cUL, RoHS |
| Brand | Yaskawa |
