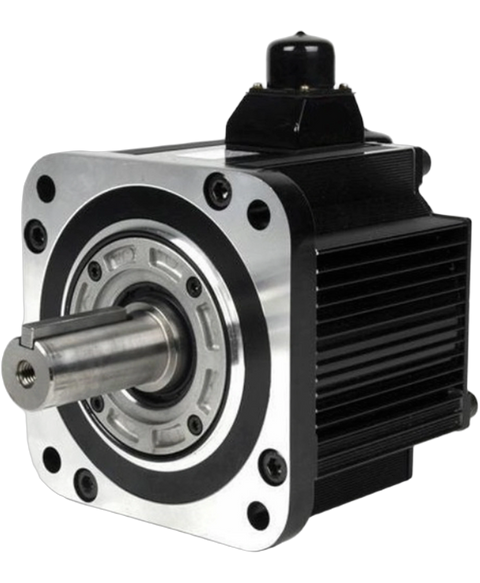

Yaskawa SGMGH-44ACA61
The Yaskawa SGMGH-44ACA61 AC servo motor from the SG Series is designed for high precision and reliability. It delivers a rated output power of 4.4 kW and operates at a rated speed of 1500 RPM, suitable for a range of industrial applications.
This Yaskawa SGMGH-44ACA61 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26870320511.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Yaskawa |
| Product Line | SG Series |
| Part Number | SGMGH-44ACA61 |
| Weight | 52.00 lbs (23.59 kg) |
| Product | AC Servo Motor |
| Rated Output Power | 4.4 KW |
| Rated Speed | 1500 RPM |
| Power Supply Voltage | 200V AC |
| Rated Current | 32.8A |
| Encoder Type | 17-bit incremental encoder |
| Shaft Specifications | Straight shaft with keyway and tap |
| Brake Option | No brake |
| Oil/Dust Seal | Not included |
| Protection Class | Totally enclosed, self-cooled IP67 (excluding shaft) |
| Certifications | UL, cUL recognized; CE compliant |
| Max. Speed | 3000 RPM |
| Inertia | Medium-inertia rotor design |
| Brand | Yaskawa |
