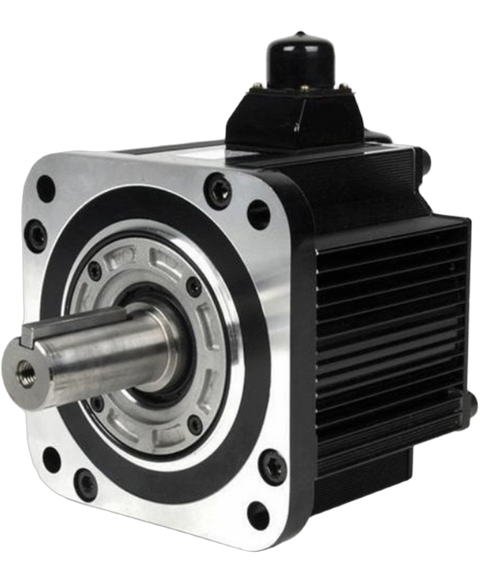

Yaskawa SGMGH-20ACA61
The Yaskawa SGMGH-20ACA61 is a high-speed servo motor with a rated output of 1.8 kW, delivering efficient and precise control for various applications. It operates at a voltage of 3-phase AC 200V and achieves a rated speed of 1500 RPM, making it suitable for high-performance environments.
This Yaskawa SGMGH-20ACA61 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805329983.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Yaskawa |
| Product Line | SG Series |
| Part Number | SGMGH-20ACA61 |
| Weight | 28.44 lbs (12.90 kg) |
| Communication Interface | DeviceNet |
| Holding Brake | Optional (DC24V) |
| Moment of Inertia | 31.1 lb·in·s² (1.75 kg·m²) |
| Design Sequence | A |
| Shaft End | Straight shaft with screw key |
| Encoder Type | 17-bit relative value |
| Peak Current | 254 A |
| Peak Torque | 28.7 N·m |
| Rated Current | 16.7 A |
| Rated Torque | 11.5 N·m |
| Power Supply Voltage | 3-phase AC 200V |
| Rated Speed | 1500 RPM |
| Rated Output | 1.8 kW |
| Brand | Yaskawa |
