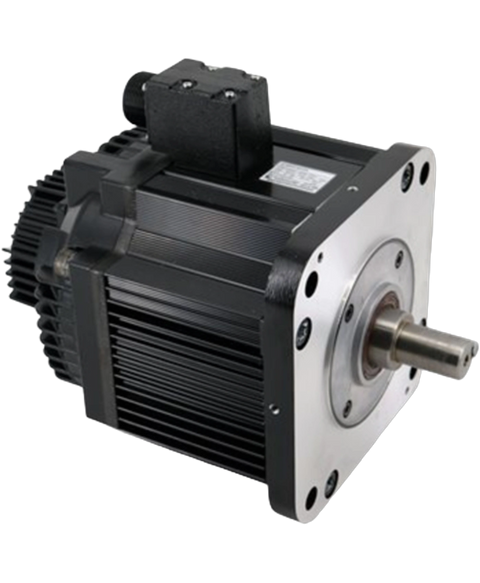

Yaskawa SGMGH-14A2A-YR13
The Yaskawa SGMGH-14A2A-YR13 is a high-performance servo motor that operates at a rated output of 1.4 kW (1.88 HP). It is capable of producing a rated torque of 8.34 Nm, with a maximum speed reaching up to 3000 rpm, ensuring efficient operation for various applications.
This Yaskawa SGMGH-14A2A-YR13 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26928371188.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Yaskawa |
| Product Line | SG Series |
| Part Number | SGMGH-14A2A-YR13 |
| Weight | 44.13 lbs (20.01 kg) |
| Description | Servo Motor |
| Rated Output | 1.4 kW (1.88 HP) |
| Rated Torque | 8.34 Nm (73.8 lb-in) |
| Rated Speed | 1500 rpm |
| Max. Speed | 3000 rpm |
| Rotor Inertia | 0.0182 kg·m² (0.0134 lb-ft²) |
| Encoder Type | Absolute (20-bit) |
| Input Voltage | 200 VAC |
| Rated Current | 10.7 A |
| Stall Current | 28 A |
| Stall Torque | 23.3 Nm (206 lb-in) |
| Shaft Diameter | 19 mm (0.75 in.) |
| Protection Rating | IP65 |
| Brand | Yaskawa |
