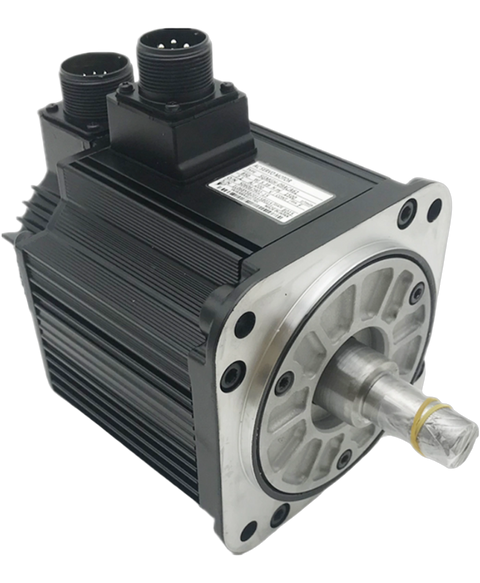

Yaskawa SGMGH-13DCA6F-OY
The Yaskawa SGMGH-13DCA6F-OY is a high-speed permanent magnet synchronous servo motor designed for precision tasks. With a continuous power output of 1.3 kW, it operates efficiently at 400 VAC in a three-phase configuration.
This Yaskawa SGMGH-13DCA6F-OY is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26928360297.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Yaskawa |
| Product Type | Permanent Magnet Synchronous Servo Motor (High-Speed Feed) |
| Product Line | SG Series |
| Part Number | SGMGH-13DCA6F-OY |
| Weight | 9.31 lbs (4.22 kg) |
| Output Power Capacity | 1.3 kW (Continuous Duty) |
| Operating Voltage Input | 400 VAC (Three-Phase) |
| Encoder Feedback Type | 17-Bit Incremental Encoder (131,072 pulses/rev) |
| Continuous Torque Output | 8.34 Nm (Rated) |
| Peak Current Draw | 5.4 A (Rated) |
| Maximum Rotational Speed | 1,500 RPM (Rated) |
| Enclosure Protection Rating | IP55 (Dust and Water-Resistant) |
| Torque Overload Capacity | 300% of Rated Torque (3 Seconds) |
| Cooling Method | Fully Enclosed, Self-Cooled (No External Fan) |
| Motor Insulation Class | Class B (130°C Maximum Winding Temperature) |
| Ambient Temperature Range | 0°C to 40°C (Operational) |
| Mechanical Mounting Style | Flange-Mounted (IEC Standard) |
| Drive Integration Method | Direct Drive (Permanent Magnet Synchronous Control) |
| Vibration Tolerance | ≤15 µm (Vibration Class Compliant) |
| Brand | Yaskawa |
