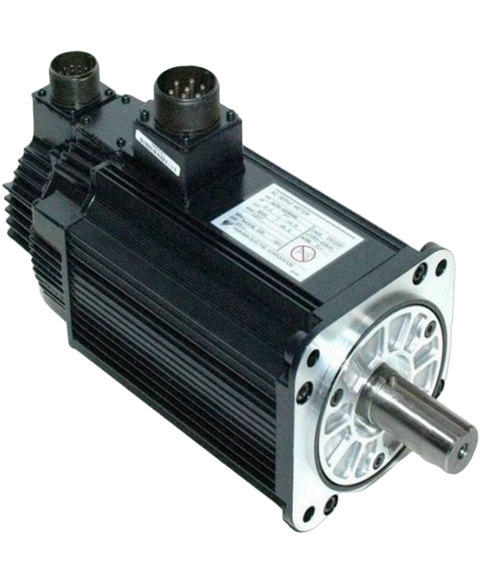

Yaskawa SGMGH-13ACA61
The Yaskawa SGMGH-13ACA61 AC servo motor from the SG Series is designed for precise control and performance. With a power output of 1.3 kW (1.74 HP), it delivers effective torque ratings and operates efficiently at a speed of 1500 RPM.
This Yaskawa SGMGH-13ACA61 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805434131.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Yaskawa |
| Product Line | SG Series |
| Part Number | SGMGH-13ACA61 |
| Weight | 20.25 lbs (9.19 kg) |
| Module | AC Servo Motor |
| Power Rating | 1.3 kW (1.74 HP) |
| Rated Torque | 8.34 Nm (1181 oz-in) |
| Speed | 1500 RPM |
| Current Rating | 10.7 A |
| Voltage Rating | 200 VAC |
| Insulation | Class F |
| Movement | Angular |
| Brand | Yaskawa |
