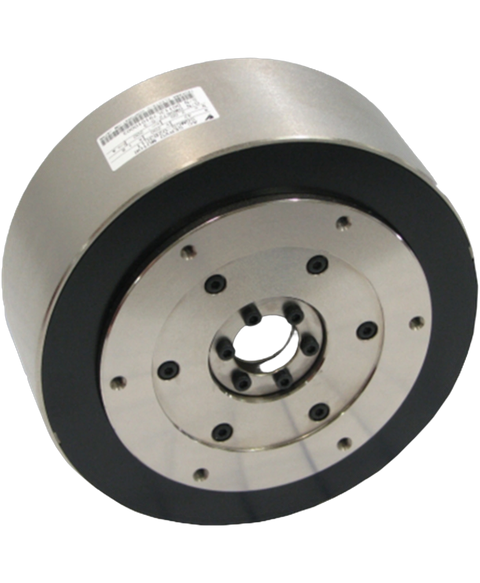

Yaskawa SGMCS-17D3C11
The SGMCS-17D3C11 motor from Yaskawa's Sigma 5 series is a coreless type, distinguished by its efficacy and precise operation. Compatible with 230 VAC applications, it features a C-face flange for mounting on the non-load side and delivers a rated torque of 17 Nm with peak values reaching 2 to 3 times that of the rated torque.
This Yaskawa SGMCS-17D3C11 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26850088780.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Yaskawa |
| Product Line | Sigma 5 |
| Part Number | SGMCS-17D3C11 |
| Weight | 48.00 lbs (21.77 kg) |
| Type | Coreless |
| Frame Size | 230 mm diameter |
| Mounting | C-face flange (non-load side) |
| Rated Torque | 17 Nm |
| Peak Torque | 2-3x rated |
| Voltage | 230 VAC |
| Encoder | 20-bit single-turn absolute |
| Feedback System | Absolute encoder |
| Flange | Standard C-face |
| Protection Class | IP65 |
| Cooling | Natural convection |
| Operating Temperature | 0°C to 40°C |
| Ambient Humidity | ≤90% |
| Brand | Yaskawa |
