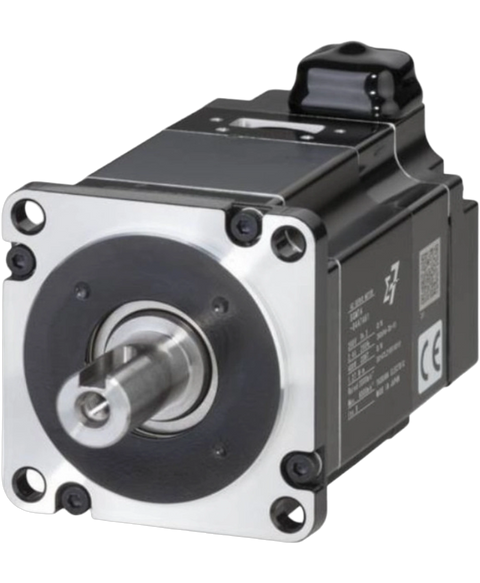

Yaskawa SGMAV-04ADA61
The Yaskawa SGMAV-04ADA61 is part of the Sigma II series and features a direct drive method with a straight shaft equipped with a key and tap. It operates at a supply voltage of 200 Volts AC, delivering a power output of 400 Watts and a rated torque of 1.27 Newton meters.
This Yaskawa SGMAV-04ADA61 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26850093919.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Yaskawa |
| Product Line | Sigma II |
| Part Number | SGMAV-04ADA61 |
| Weight | 5.00 lbs (2.27 kg) |
| Shaft Shape | Straight shaft with key and tap |
| Main Circuit Supply Voltage | 200 Volts AC |
| Protection Class | IP65 |
| Encoder Type | Incremental encoder |
| Encoder Resolution | 20-bit |
| Rated Speed | 3,000 revolutions per minute (RPM) |
| Rated Torque | 1.27 Newton-meter |
| Rated Output | 400 Watts |
| Ambient Operating Temperature | 0 to 40°C (in a non-condensing environment) |
| Maximum Torque | 3.82 Newton-meter |
| Storage Temperature | -20 to 85°C (in a non-condensing environment) |
| Rated Current | 2.6 Amperes |
| Maximum Current | 8.5 Amperes |
| Drive Method | Direct drive |
| Maximum Speed | 6,000 revolutions per minute (RPM) |
| Brand | Yaskawa |
