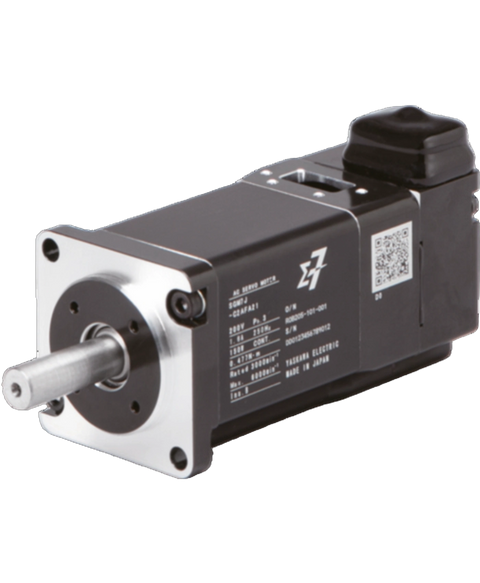

Yaskawa SGMAS-08A2A-FJ31
The Yaskawa SGMAS-08A2A-FJ31 is an AC servo motor designed for precision applications. It delivers a rated power of 0.75 kW (1.01 HP) and functions at a voltage of 200 V AC, while generating a rated current of 5.4 A. The motor can achieve speeds of up to 3000 RPM with a torque output of 2.39 Nm.
This Yaskawa SGMAS-08A2A-FJ31 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805464756.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Yaskawa |
| Product Type | AC Servo Motor |
| Product Line | Sigma III |
| Part Number | SGMAS-08A2A-FJ31 |
| Weight | 17.50 lbs (7.94 kg) |
| Rated Power | 0.75 kW (1.01 HP) |
| Rated Voltage | 200 V AC |
| Rated Current | 5.4 A |
| Rated Speed | 3000 RPM |
| Rated Torque | 2.39 Nm |
| Encoder Type | Absolute Encoder (17-bit Serial) |
| Shaft Configuration | Nonstandard Shaft |
| Sealing | Equipped with Oil Seal |
| Frame Size | Compact design |
| Cooling Method | Natural cooling |
| Ambient Temperature Range | Operates within 0°C to 40°C (32°F to 104°F) |
| Protection Class | IP65 |
| Brand | Yaskawa |
