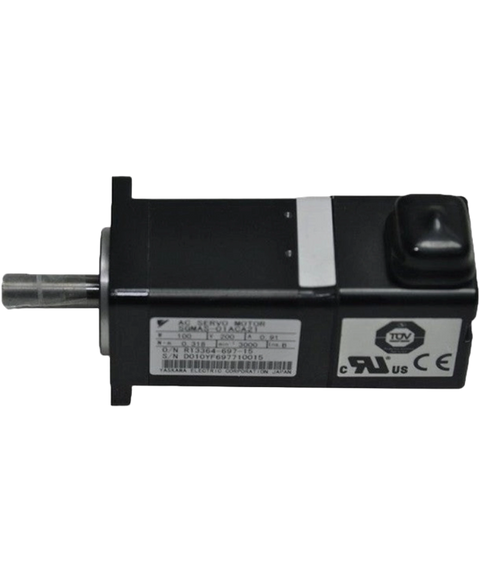

Yaskawa SGMAS-01ACA21
The Yaskawa SGMAS-01ACA21 is an AC servo motor designed to deliver precise motion control. It operates effectively at a rated voltage of 200 VAC, providing reliable performance.
This Yaskawa SGMAS-01ACA21 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26872573453.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Yaskawa |
| Product Type | AC Servo Motor |
| Product Line | Sigma III |
| Part Number | SGMAS-01ACA21 |
| Weight | 1.75 lbs (0.79 kg) |
| Rated Current | 0.91 A |
| Rated Voltage | 200 VAC |
| Rated Speed | 3000 RPM |
| Rated Torque | 0.19 Nm |
| Rated Power | 0.2 kW |
| Peak Torque | 0.57 Nm |
| Shaft Diameter | 14 mm |
| Insulation Class | Class B |
| Motor Length | 130 mm |
| Cooling Method | Air Cooled |
| Encoder Type | Incremental Encoder |
| Encoder Resolution | 2500 PPR |
| Motor Inertia | 0.0021 kg·m² |
| Maximum Axial Load | 40 N |
| Brand | Yaskawa |
