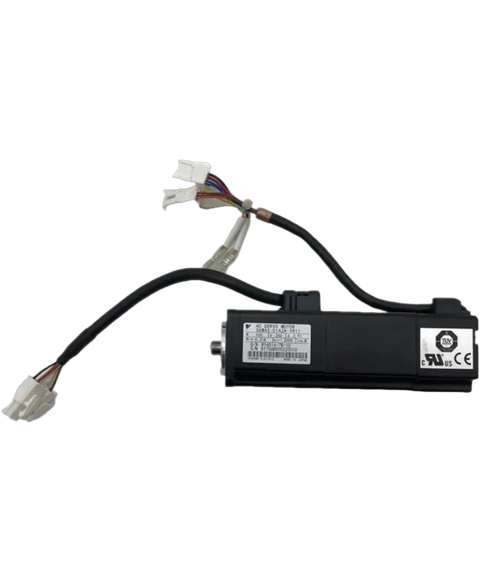

Yaskawa SGMAS-01A2A-YR11
The Yaskawa SGMAS-01A2A-YR11 is an AC synchronous servo motor known for its reliability and precision in motion control applications. It operates at a nominal voltage of 200 VAC and has a rated current of 0.91 A, delivering a maximum output of 100 W.
This Yaskawa SGMAS-01A2A-YR11 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26960442690.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Yaskawa |
| Product Line | Sigma III |
| Part Number | SGMAS-01A2A-YR11 |
| Weight | 1.88 lbs (0.85 kg) |
| Motor Type | AC synchronous servo motor |
| Rated Current | 0.91 A continuous |
| Operating Voltage | 200 VAC nominal input |
| Mechanical Power Output | 100 W rated mechanical power |
| Horsepower Equivalent | 0.13 HP continuous output capacity |
| Continuous Torque | 0.32 Nm rated torque |
| Peak Torque Capacity | 0.96 Nm maximum instantaneous torque |
| Base Speed | 3000 RPM rated rotational speed under full load |
| Maximum Speed Limit | 5000 RPM allowable rotational speed (brief operation) |
| Encoder Feedback Type | 17-bit incremental encoder (131,072 pulses/revolution resolution) |
| Electrical Insulation Grade | Class B insulation system for winding temperature tolerance |
| Ambient Operating Range | 0°C to 40°C temperature range without derating |
| Environmental Protection | IP65-rated |
| Brand | Yaskawa |
