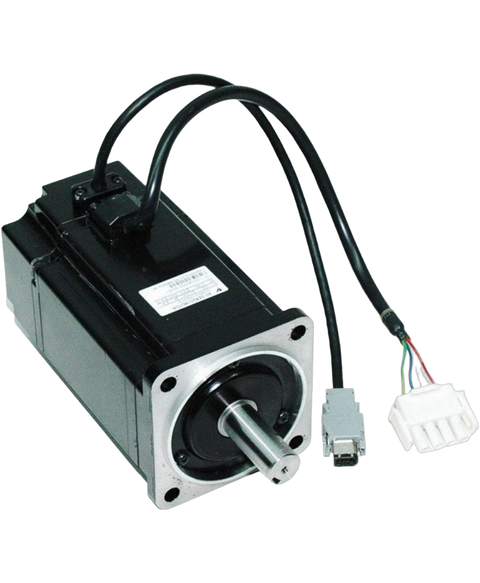

Yaskawa SGMAH-A5A1A4C
The SGMAH-A5A1A4C model from Yaskawa's Sigma 7 series is an AC servo motor engineered for precise control. This motor is rated for 50 W and operates at a voltage of 200 V, drawing a current of 0.64 A while delivering a torque of 0.159 Nm at speeds of up to 3000 r,min.
This Yaskawa SGMAH-A5A1A4C is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805451068.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Yaskawa |
| Product Line | Sigma 7 |
| Part Number | SGMAH-A5A1A4C |
| Weight | 1.50 lbs (0.68 kg) |
| Product | AC Servo Motor |
| Power Rating | 50 W |
| Voltage Rating | 200 V |
| Current Rating | 0.64 A |
| Torque Rating | 0.159 Nm |
| Speed | 3000 r/min |
| Insulation Class | B |
| Ambient Temperature Range | 0 to 40 degrees Celsius |
| Operating Humidity | Up to 80% RH (non-condensing) |
| Storage Humidity | Up to 80% RH (non-condensing) |
| Maximum Operating Altitude | 1000 meters above sea level without derating |
| Brand | Yaskawa |
