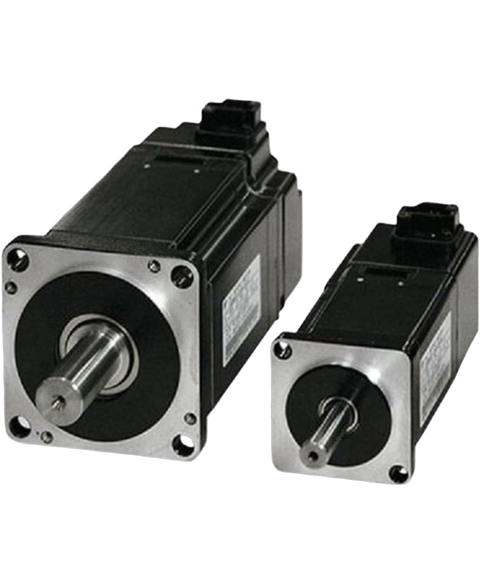

Yaskawa SGMAH-A5A1A-YR11
The Yaskawa SGMAH-A5A1A-YR11 is a servo motor designed for precision in various industrial tasks, including advanced manufacturing and milling. With a voltage requirement of 200V AC, this motor delivers efficiency with a torque output of 0.159 Nm at a maximum speed of 3000 RPM.
This Yaskawa SGMAH-A5A1A-YR11 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26862169655.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Yaskawa |
| Product Type | Servo Motor |
| Product Line | Sigma II |
| Part Number | SGMAH-A5A1A-YR11 |
| Weight | 5.00 lbs (2.27 kg) |
| Supported Axes | R, B, T Axes |
| Brake | Included |
| Voltage | 200V AC |
| Current | 0.3 Amps |
| Torque | 0.159 Nm |
| Speed | 3000 RPM |
| Power | 50 Watts |
| Advanced Manufacturing Applications | Supported |
| Milling Applications | Supported |
| Factory Automation Applications | Supported |
| Operating Temperature | 0 to 40 degrees Celsius |
| Storage Temperature | 0 to 50 degrees Celsius |
| Maximum Operating Relative Humidity | 80%, non-condensing |
| Maximum Storage Relative Humidity | 80%, non-condensing |
| Brand | Yaskawa |
