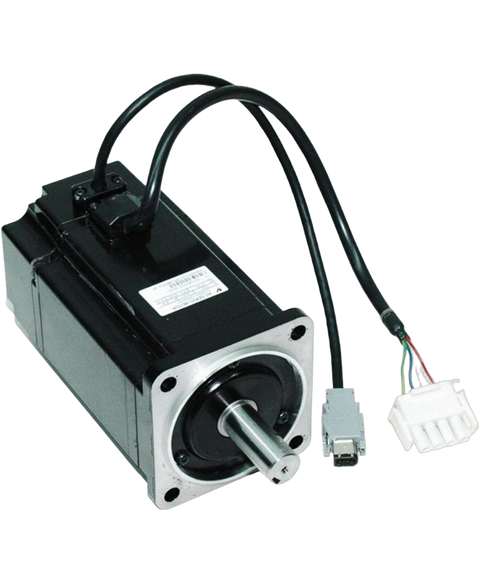

Yaskawa SGMAH-08AAF41
The Yaskawa SGMAH-08AAF41 is a servo motor built for high performance. It features a rated speed of 3,000 RPM and can reach a maximum of 5,000 RPM. This motor operates efficiently within an ambient temperature range of 0 to 40°C while maintaining an IP55 protection rating, ensuring resilience in various environments.
This Yaskawa SGMAH-08AAF41 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805663637.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Yaskawa |
| Product Type | Servo motor |
| Product Line | Sigma II |
| Part Number | SGMAH-08AAF41 |
| Weight | 5.00 lbs (2.27 kg) |
| Rated Speed | 3,000 revolutions per minute (RPM) |
| Maximum Speed | 5,000 revolutions per minute (RPM) |
| Protection Class | IP55 |
| Ambient Operating Temperature | 0 to 40°C (in a non-condensing environment) |
| Storage Temperature | -20 to 85°C (in a non-condensing environment) |
| Insulation Class | Class B |
| Current Rating | 4.4 Amperes |
| Instantaneous Maximum Current | 13.4 Amperes |
| Rated Torque | 2.39 Newton-meter |
| Encoder Resolution | 13-bit |
| Shaft Shape | Straight shaft with keyway |
| Mounting Method | Flange mount |
| Main Circuit Supply Voltage | 200 Volts AC |
| Brand | Yaskawa |
