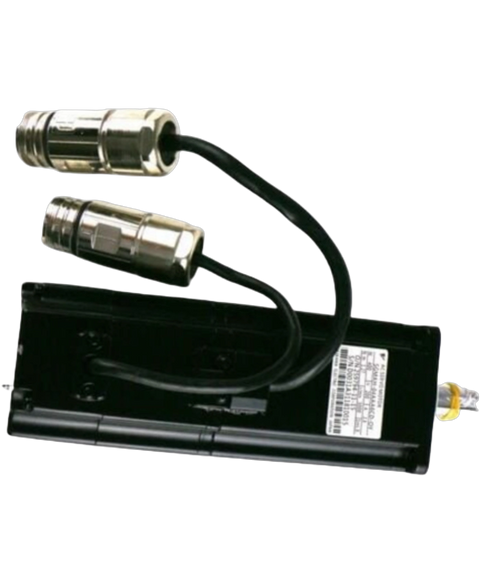

Yaskawa SGMAH-04AAF41
The SGMAH-04AAF41, a servo motor from Yaskawa’s Sigma II series, operates at 0.4 kilowatts and has high-performance specifications. It features a 1-phase input and is designed for robust applications, with a max. speed of 5,000 RPM.
This Yaskawa SGMAH-04AAF41 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805422661.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Yaskawa |
| Product Type | Servo motor |
| Product Line | Sigma II |
| Part Number | SGMAH-04AAF41 |
| Weight | 5.00 lbs (2.27 kg) |
| Input Phase Type | 1-phase input |
| Motor Type | Super high power rate motor |
| Encoder Type | Incremental encoder |
| Rated Output | 0.4 kilowatt |
| Rated Speed | 3,000 revolutions per minute (RPM) |
| Maximum Speed | 5,000 revolutions per minute (RPM) |
| Ambient Operating Temperature | 0 to 40°C (in a non-condensing environment) |
| Storage Temperature | -20 to 85°C (in a non-condensing environment) |
| Encoder Resolution | 13-bit |
| Protection Class | IP55 |
| Shaft Shape | Straight shaft with keyway |
| Main Circuit Supply Voltage | 200 Volts AC |
| Torque Rating | 1.27 Newton-meter |
| Mounting Method | Flange mount |
| Brand | Yaskawa |
