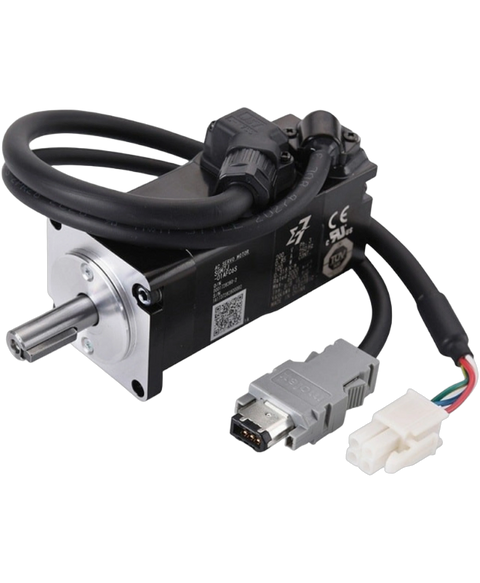

Yaskawa SGM7J-04AFC6S
The Yaskawa SGM7J-04AFC6S rotary servo motor is engineered for precision control in motion applications. This motor operates with a rated voltage of 200 V AC and supports a 3-phase system, delivering up to 1.27 Nm of torque at a maximum speed of 3000 rpm.
This Yaskawa SGM7J-04AFC6S is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805669656.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Yaskawa |
| Product Type | Rotary Servo Motor |
| Product Line | Sigma 7 |
| Part Number | SGM7J-04AFC6S |
| Weight | 3.06 lbs (1.39 kg) |
| Encoder Type | Incremental Encoder |
| Encoder Resolution | 24-bit |
| Rated Speed | 3000 rpm |
| Rated Current | 2.5 A |
| Rated Torque | 1.27 Nm |
| Rated Voltage | 200 V |
| Voltage Type | AC |
| Number of Phases | 3-Phase |
| Shaft Type | Straight Shaft |
| Flange Size | 60 mm Square |
| Flange Diameter | 70 mm |
| Shaft Diameter | 14 mm |
| Shaft Length | 30 mm |
| IP Protection | IP67 |
| Brand | Yaskawa |
