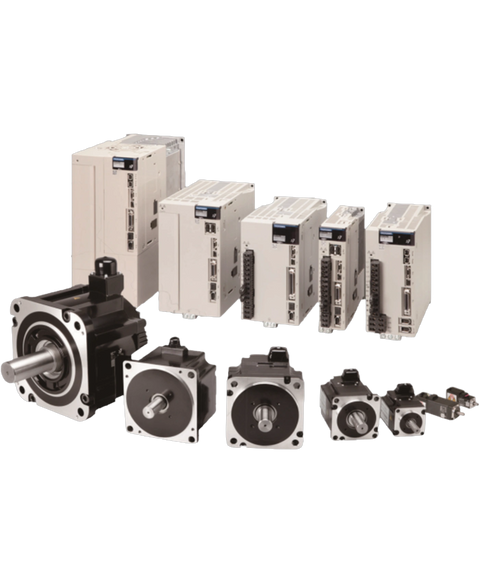

Yaskawa SGM-08U3B4L
The Yaskawa SGM-08U3B4L servo motor from the Sigma-7 series is engineered for precise motion control. It operates at an input voltage of 200 Volts AC, allowing for efficient energy use. Rated for continuous output at 4.4 Amperes, it provides a substantial torque of 2.39 Newton-meters at 3,000 RPM, delivering 750 Watts of power with a horsepower capacity of 1.01.
This Yaskawa SGM-08U3B4L is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805414003.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Yaskawa |
| Product Type | Servo motor |
| Product Line | SGM Sigma-7 Series |
| Part Number | SGM-08U3B4L |
| Weight | 5.00 lbs (2.27 kg) |
| Mounting Method | Flange mount |
| Continuous Output Current Rating | 4.4 Amperes |
| Rated Speed | 3,000 revolutions per minute (RPM) |
| Insulation Class | B-class |
| Rated Output | 750 Watts |
| Rated Torque | 2.39 Newton-meter |
| Ambient Operating Temperature | 0 to 40°C (in a non-condensing environment) |
| Encoder Type | Incremental encoder |
| Storage Temperature | -20 to 85°C (in a non-condensing environment) |
| Input Voltage Rating | 200 Volts AC |
| Horsepower Capacity | 1.01 horsepower |
| Shaft Shape | Straight shaft with keyway |
| Brand | Yaskawa |
