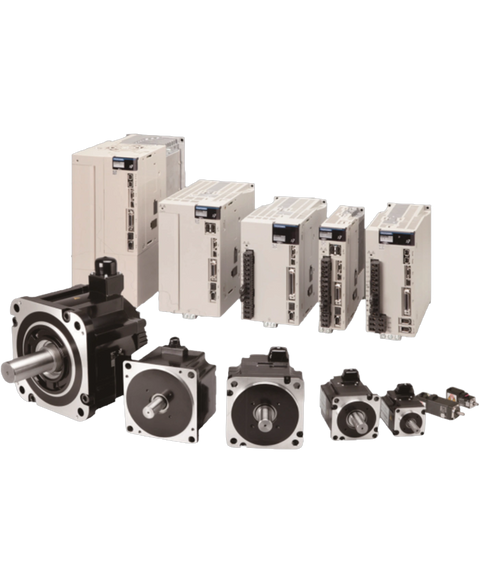

Yaskawa SGM-08U2HA12
The SGM-08U2HA12 from Yaskawa's Sigma-7 series is a capable servo motor with a power capacity of 1.01 horsepower. This motor operates efficiently at a rated speed of 3,000 RPM and has a rated output of 750 watts, making it suitable for various applications requiring precise control.
This Yaskawa SGM-08U2HA12 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26801424524.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Yaskawa |
| Product Type | Servo Motor |
| Product Line | SGM Sigma-7 Series |
| Part Number | SGM-08U2HA12 |
| Weight | 5.00 lbs (2.27 kg) |
| Horsepower Capacity | 1.01 horsepower |
| Rated Speed | 3,000 revolutions per minute (RPM) |
| Input Voltage Rating | 200 Volts AC |
| Ambient Operating Temperature | 0 to 40°C (in a non-condensing environment) |
| Rated Torque | 2.39 Newton-meter |
| Storage Temperature | -20 to 85°C (in a non-condensing environment) |
| Rated Output | 750 Watts |
| Continuous Output Current Rating | 4.4 Amperes |
| Power Rating | 85.1 kilowatt per second |
| Drive Method | Direct Drive |
| Maximum Output Current | 13.9 Amperes |
| Mounting Method | Flange mount |
| Insulation Class | Class B |
| Instantaneous Peak Torque | 7.1 Newton-meter |
| Brand | Yaskawa |
