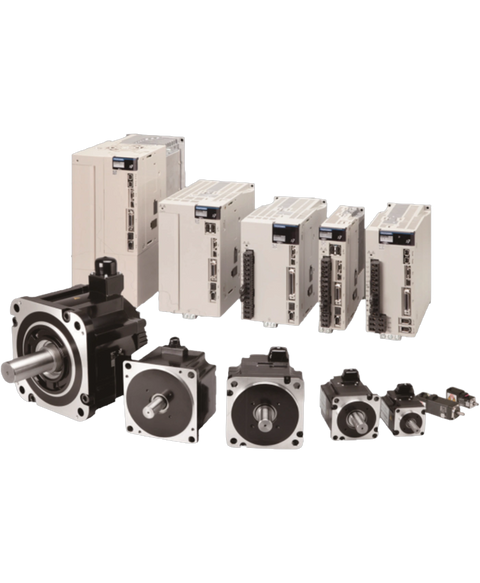

Yaskawa SGM-01A314
The Yaskawa SGM-01A314 is an AC servo motor designed for precision applications. With a rated voltage of 200 V AC, it delivers a power of 100 W and operates at a maximum speed of 3000 RPM. This motor also features an absolute encoder with 12-bit resolution, ensuring accurate positioning.
This Yaskawa SGM-01A314 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805603362.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Yaskawa |
| Product Type | AC Servo Motor |
| Product Line | SGM Sigma-7 Series |
| Part Number | SGM-01A314 |
| Weight | 1.69 lbs (0.77 kg) |
| Rated Voltage | 200 V AC |
| Rated Current | 0.87 A |
| Rated Power | 100 W |
| Rated Speed | 3000 RPM |
| Encoder Type | Absolute Encoder With 12-bit |
| Shaft Type | Straight with Keyway |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | 40°C |
| Maximum Humidity | 80% (non-condensing) |
| Operating Altitude | 1000 meters max. above sea level |
| Brand | Yaskawa |
