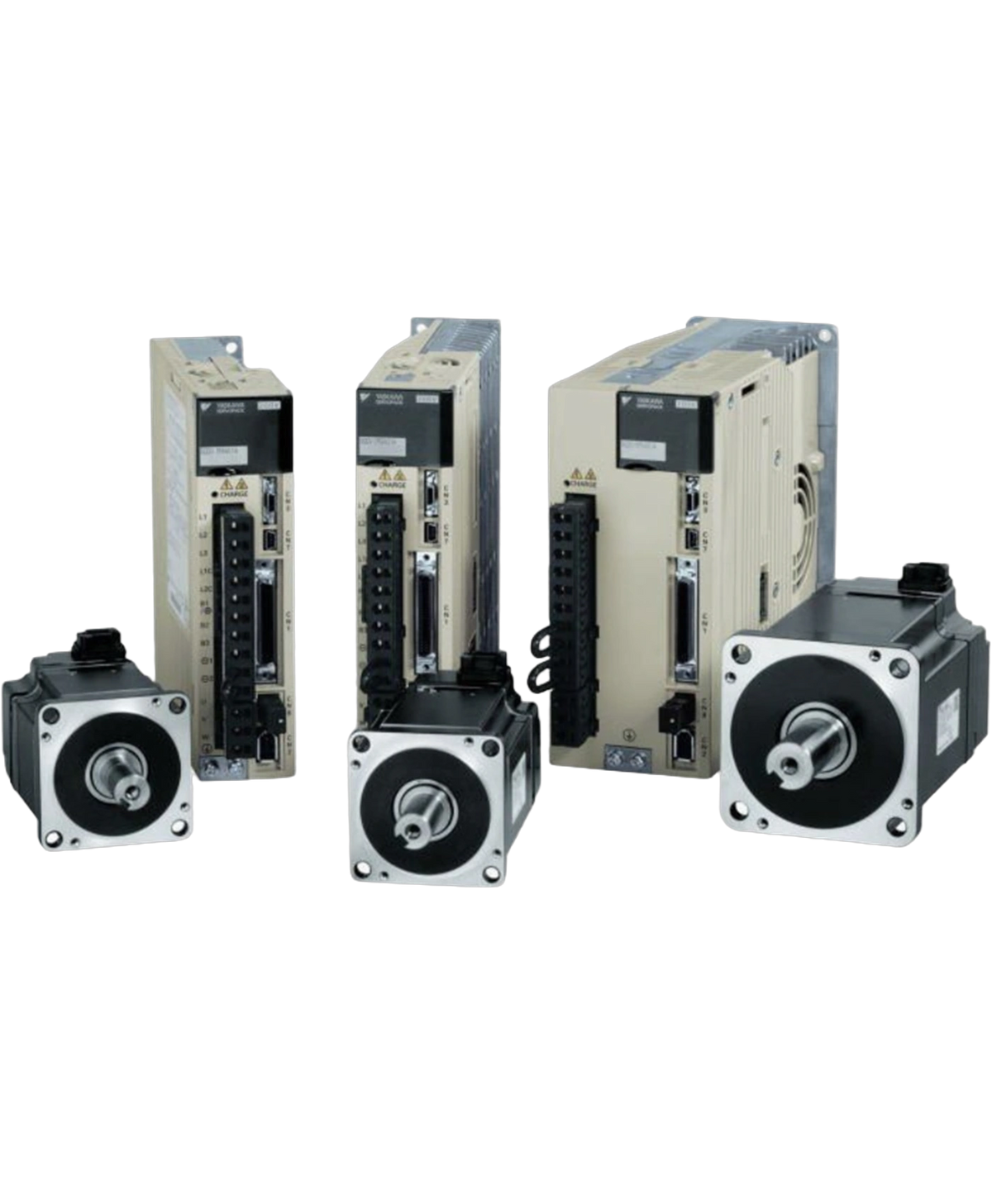

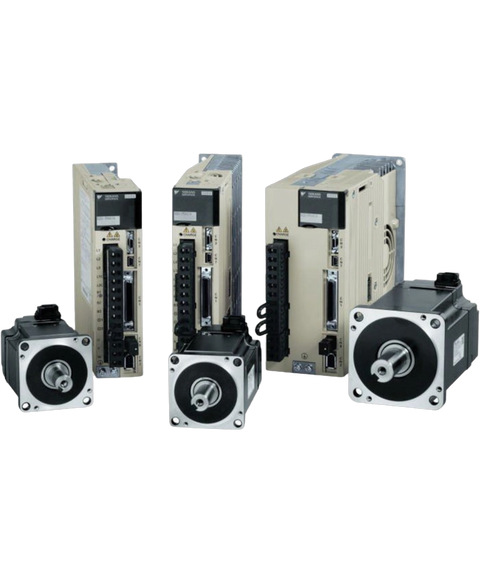

Yaskawa SGDV-R90A11A
The Yaskawa SGDV-R90A11A is an AC servo drive, with input specifications allowing for 200 to 230 volts AC operation. It provides a maximum output of 100 watts with an output current rating of 0.91 amps.
This Yaskawa SGDV-R90A11A is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Servo drives range and is referenced internally as PartLogic SKU PL26805329882.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Yaskawa |
| Product Line | Sigma 5 |
| Part Number | SGDV-R90A11A |
| Weight | 0.88 lbs (0.40 kg) |
| Drive Type | AC Servo Drive |
| Input Voltage | 200-230V AC |
| Frequency | 50/60 Hz |
| Input Current | 0.5 Amps |
| Output Power | 100W |
| Output Current | 0.91 Amps |
| Output Voltage | 0-230V AC |
| Operating Temperature | 0 to 55 degrees Celsius |
| Maximum Operating Humidity | 80% RH (non-condensing) |
| Maximum Storage Humidity | 80% RH (non-condensing) |
| Maximum Operating Altitude | 1000 meters above sea level |
| Maximum Storage Altitude | 1000 meters above sea level |
| Operating Environment | Clean indoor environment without corrosive chemicals |
| Brand | Yaskawa |
