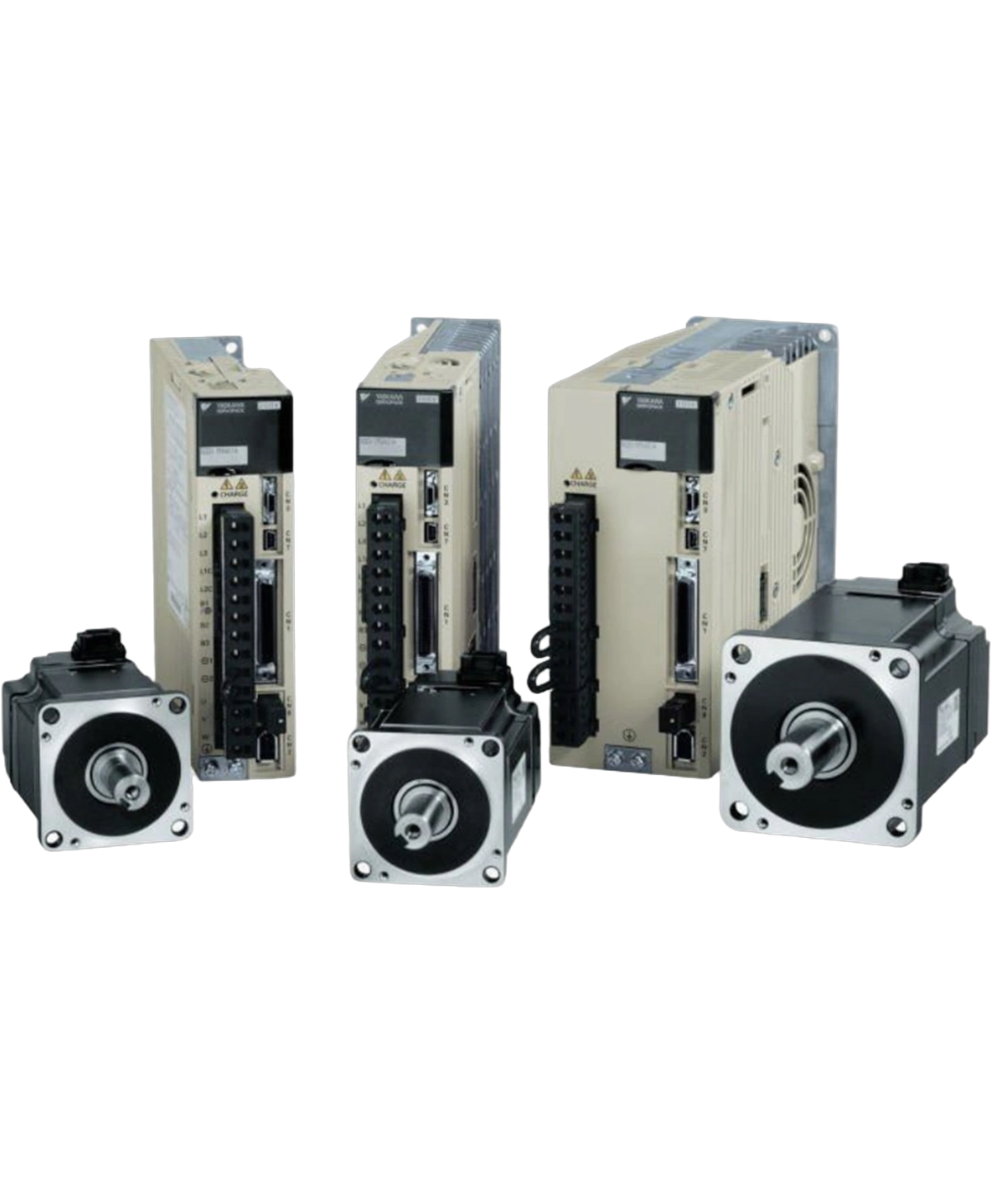

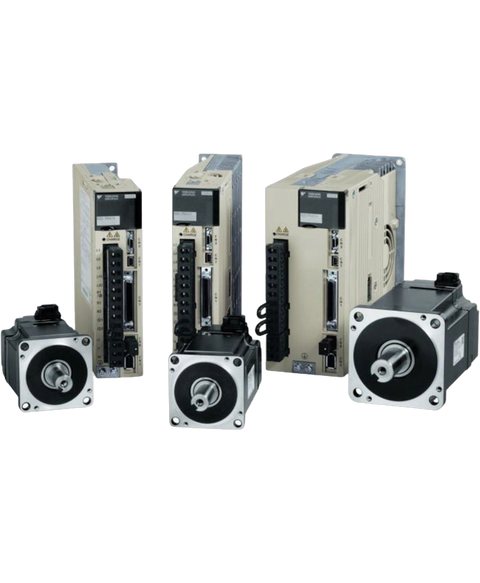

Yaskawa SGDV-5R5A01A002000
The Yaskawa SGDV-5R5A01A002000 operates as an AC servo drive delivering a power output of 0.75 kW. With a voltage range of 200-230 VAC, it maintains consistent performance across various industrial applications.
This Yaskawa SGDV-5R5A01A002000 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Servo drives range and is referenced internally as PartLogic SKU PL26872494718.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Yaskawa |
| Product Line | Sigma 5 |
| Part Number | SGDV-5R5A01A002000 |
| Weight | 3.25 lbs (1.47 kg) |
| Name | AC Servo Drive |
| Power Rating | 0.75 kW |
| Voltage | 200-230 VAC |
| Continuous Rated Current (1PH) | 5.5 A |
| Peak Rated Current (1PH) | 16.9 A |
| Continuous Rated Current (3PH) | 5.5 A |
| Peak Rated Current (3PH) | 16.9 A |
| Control Mode | Rotary Servo |
| Phase | 1, 3 |
| Frequency | 1,000 Hz |
| Analog Inputs | 2 |
| Analog Outputs | 2 |
| Digital Inputs | 7 |
| Digital Outputs | 3 |
| Brand | Yaskawa |
