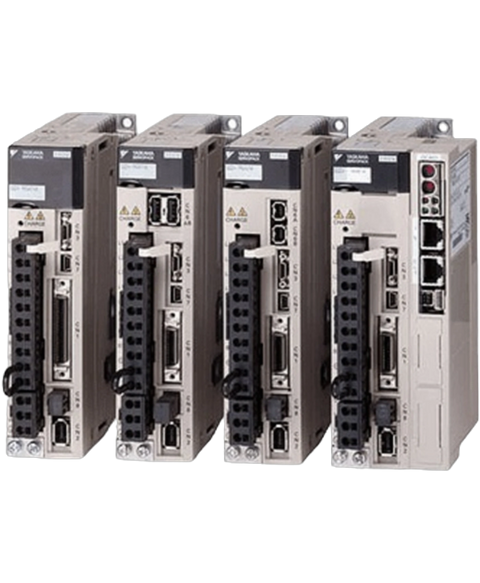

Yaskawa SGDV-180A01A
The Yaskawa SGDV-180A01A is an AC servo drive designed for precise motor control. It operates within a voltage input range of 200 to 230V AC and can handle input currents of up to 9.7 Amps. The drive outputs a maximum voltage of 230V AC for a robust performance in various applications.
This Yaskawa SGDV-180A01A is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Servo drives range and is referenced internally as PartLogic SKU PL26846304932.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Yaskawa |
| Product Line | Sigma V SGDV |
| Part Number | SGDV-180A01A |
| Weight | 7.00 lbs (3.18 kg) |
| Series | AC Drives |
| Drive Type | AC Servo Drive |
| Input Voltage Rating | 200-230V AC |
| Input Voltage Type | 3-Phase |
| Input Frequency | 50/60 Hz |
| Input Current | 9.7 Amps |
| Output Voltage Rating | 0-230V AC |
| Output Voltage Type | 3-Phase |
| Output Frequency | 0-400 Hz |
| Output Current | 18.5 Amps |
| Output Power | 2 kW |
| Operating Temperature | 0 to 55 degrees Celsius |
| Maximum Operating Humidity | 80% RH (non-condensing) |
| Maximum Storage Humidity | 80% RH (non-condensing) |
| Maximum Operating Altitude | 1000 meters above sea level |
| Brand | Yaskawa |
