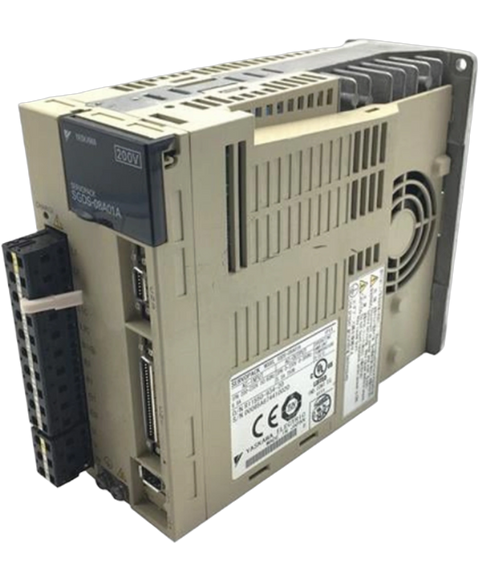

Yaskawa SGDS-08A01A
The Yaskawa SGDS-08A01A is a robust AC servo drive primarily designed for precise motion control. It operates on a rated voltage of 200 to 240V AC with a single-phase input, achieving a power rating of 750W and supporting an output current of 5.5A.
This Yaskawa SGDS-08A01A is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Servo drives range and is referenced internally as PartLogic SKU PL26872319069.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Yaskawa |
| Product Line | SG Series |
| Part Number | SGDS-08A01A |
| Weight | 5.00 lbs (2.27 kg) |
| Name | AC Servo Drive |
| Power Rating | 750W |
| Rated Output Current | 5.5A |
| Rated Voltage | 200V to 240V AC, single-phase input |
| Input Frequency | 50/60 Hz |
| Control Method | Field-Oriented Control |
| Overload Capacity | 150% of rated output current for 3 seconds |
| Speed Control Range | 3000 RPM |
| Operating Temperature Range | 0°C to +40°C |
| Storage Temperature Range | -20°C to +65°C |
| Cooling Method | Natural cooling |
| Feedback Type | Incremental encoder feedback |
| Safety Features | Overcurrent, overvoltage, undervoltage, and thermal overload protection |
| Brand | Yaskawa |
