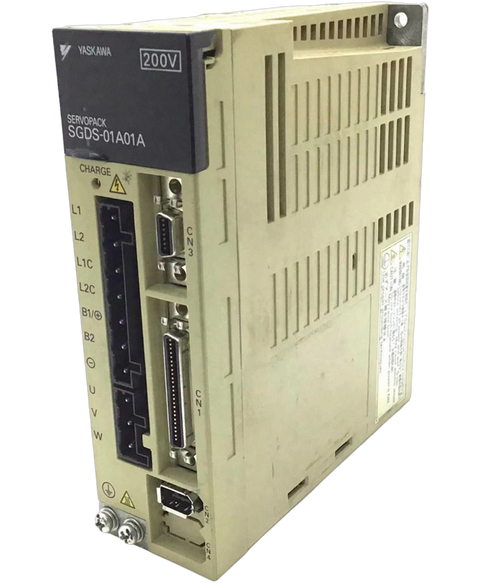

Yaskawa SGDS-01A01A
The SGDS-01A01A model from Yaskawa's Sigma III series is a servo amplifier with a rated output of 100 Watts. This device is engineered to operate at a supply voltage of 200 VAC and supports continuous output currents up to 0.91 A, with a maximum output current of 2.8 A.
This Yaskawa SGDS-01A01A is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Servo drives range and is referenced internally as PartLogic SKU PL26861849161.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Yaskawa |
| Product Type | Servo Amplifier |
| Product Line | Sigma III |
| Part Number | SGDS-01A01A |
| Weight | 1.38 lbs (0.62 kg) |
| Rated Output | 100 Watts |
| Supply Voltage Class | 200 Volts AC |
| Continuous Output Current | 0.91 Amperes |
| Rated Voltage Phase | 1-phase |
| Ambient Operating Temperature | 0 to 55°C (in a non-condensing environment) |
| Encoder Type | 17-bit serial encoder |
| Humidity Tolerance | 90% relative humidity or less (without condensation) |
| Mounting Method | Base mount (optional rack mount is also available) |
| Control Method | 1-phase or 3-phase full-wave rectification IGBT-PWM (Insulated-Gate Bipolar Transistors-Pulse Width Modulation) method |
| Status Indicator Type | 7-segment LED display |
| Maximum Output Current | 2.8 Amperes |
| Vibration Resistance | 4.9 meter per second squared |
| Speed Control Range | 1:5,000 |
| Storage Temperature | -20 to 85°C (in a non-condensing environment) |
| Brand | Yaskawa |
