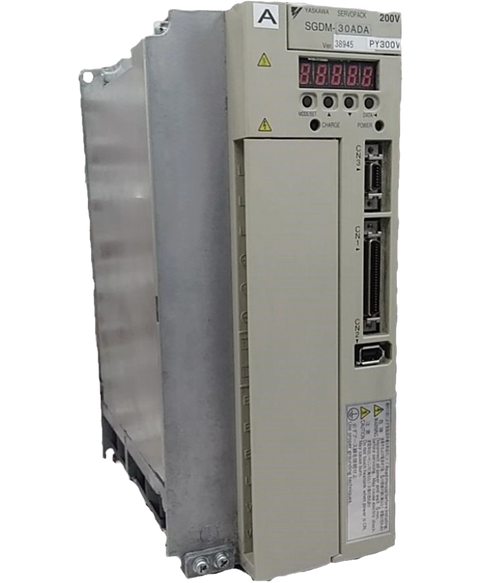

Yaskawa SGDM-30ADA
The SGDM-30ADA from Yaskawa is a servo drive for advanced motion control applications. Designed to operate in 3-phase systems, this unit supports an input voltage range of 200 to 230 Volts AC.
This Yaskawa SGDM-30ADA is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Servo drives range and is referenced internally as PartLogic SKU PL26872156536.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Yaskawa |
| Product Type | Servo Drive |
| Product Line | SG Series |
| Part Number | SGDM-30ADA |
| Weight | 3.69 lbs (1.67 kg) |
| Rated Input Voltage | 200 to 230 Volts AC |
| Configuration | Base-mounted |
| Output Current Rating | 24.8 Amperes |
| Output Voltage Rating | 0 to 230 Volts AC |
| Maximum Output Current | 56 Amperes |
| Network Phase Type | 3-phase |
| Ambient Operating Temperature | 0 to 55°C (non-condensing) |
| Resistor Type | Built-in regenerative resistor |
| Storage Temperature | -25 to 85°C (non-condensing) |
| Humidity Tolerance | 90% relative humidity maximum, non-condensing |
| Speed Control Range | 84:20:00 |
| Vibration Resistance | 4.9 meters per second squared |
| Shock Resistance | 19.6 meters per second squared |
| Network Frequency | 50 to 60 Hertz |
| Brand | Yaskawa |
