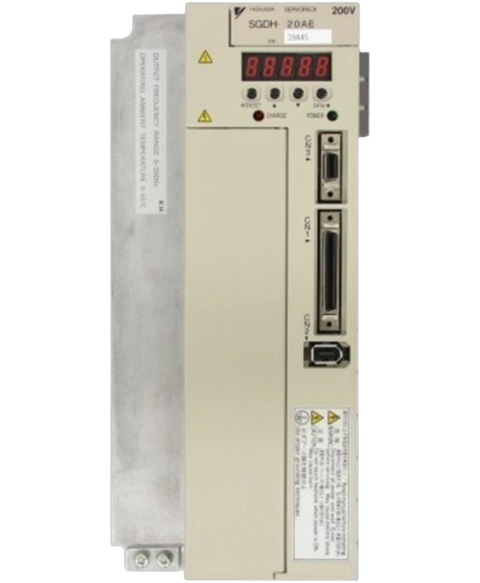

Yaskawa SGDH-20AE
The Yaskawa SGDH-20AE AC Servo Drive is designed for efficient motion control. Operating at a rated active power of 2 kilowatts and a 3-phase input voltage of 230 volts AC, it can handle tasks with an output current of 18.5 amperes. This drive incorporates an incremental encoder with a resolution of 17 bits, allowing precision in speed and position control.
This Yaskawa SGDH-20AE is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Servo drives range and is referenced internally as PartLogic SKU PL26887567741.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Yaskawa |
| Product Type | AC Servo Drive |
| Product Line | SGDH |
| Part Number | SGDH-20AE |
| Weight | 9.19 lbs (4.17 kg) |
| Rated Active Power | 2 kilowatts |
| Supply Voltage Class | 230 Volts AC |
| Rated Phase | 3-phase |
| Output Current Rating | 18.5 Amperes |
| Control Circuit Power Loss | 15 Watts |
| Main Circuit Power Loss | 120 Watts |
| Speed Rating | 1,500 revolutions per minute (RPM) |
| Encoder Type | Incremental encoder |
| Input Current Rating | 12 Amperes |
| Encoder Resolution | 17-bit |
| Maximum Speed | 3,000 revolutions per minute (RPM) |
| Ambient Operating Temperature | 0 to 40°C (in a non-condensing environment) |
| Humidity Tolerance | 20% to 80% relative humidity (without condensation) |
| Regenerative Resistor Power Loss | 28 kilowatts |
| Brand | Yaskawa |
