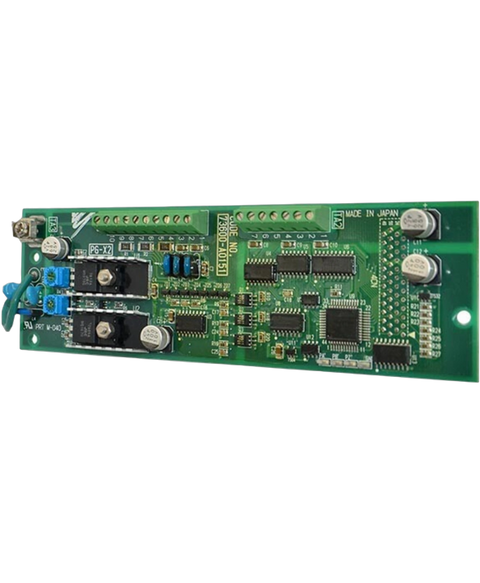

Yaskawa PG-X2
The Yaskawa PG-X2 is an encoder feedback card utilized in various servo applications. This module is designed to accommodate a power supply for encoders rated at either 12V DC or 5V DC, both with a maximum current of 200 mA and offers compatibility with drive series such as F7 and G7.
This Yaskawa PG-X2 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Encoders range and is referenced internally as PartLogic SKU PL26810629555.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Yaskawa |
| Product Line | Varispeed |
| Part Number | PG-X2 |
| Weight | 3.00 lbs (1.36 kg) |
| Module Type | Encoder Feedback Card |
| Power Supply for Encoder | 12V DC (200mA max) / +5V DC (200mA max) |
| PG Signal Inputs | Phase A (+/-), Phase B (+/-), Phase Z (+/-) |
| Pulse Monitor Output | RS-422 Level Output |
| Compatible Drive Series | F7, G7, GPD 515/G5, G5HHP |
| Maximum Input Frequency | 300 kHz |
| Resolution | Dependent on Encoder |
| Wiring | Shielded, twisted-pair (22 AWG) |
| Max. Cable Length | 50 meters (165 feet) |
| Grounding | Yes |
| Isolation Voltage | 1000 volts |
| Supported Wire Gauge | 14 AWG minimum |
| Terminal Type | Screw |
| Brand | Yaskawa |
