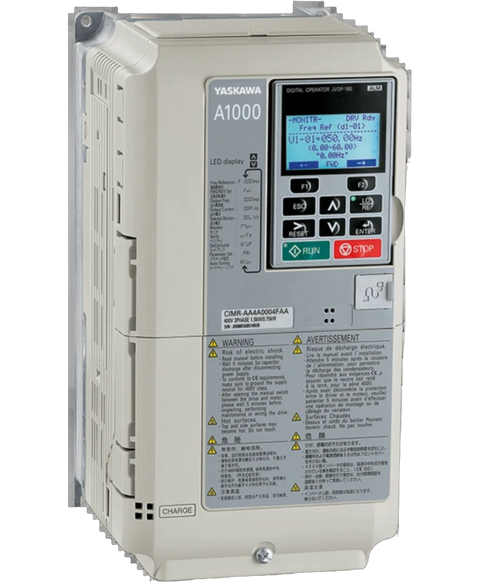

Yaskawa CIMR-AU4A0004FAA
The Yaskawa CIMR-AU4A0004FAA is a three-phase AC drive designed for 400V class applications. It is compatible with motors rated at 2 HP for both ND and HD types. This drive operates efficiently within an input voltage range of 380 to 480 volts AC at 50 or 60 Hz, with input currents of 4.3 A and 3.2 A, respectively.
This Yaskawa CIMR-AU4A0004FAA is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives range and is referenced internally as PartLogic SKU PL26860234129.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Yaskawa |
| Product Line | A1000 |
| Part Number | CIMR-AU4A0004FAA |
| Weight | 7.00 lbs (3.18 kg) |
| Drive Type | Three-Phase 400V Class AC Drive |
| Motor Compatibility | 2 HP (ND), 2 HP (HD) |
| Input Voltage Range | 380-480V AC, 50/60 Hz |
| Input Current | 4.3 A (ND), 3.2 A (HD) |
| Output Current | 4.1 A (ND), 3.4 A (HD) |
| Overload Capacity | 120% for 60 sec (ND), 150% for 60 sec (HD) |
| Control Modes | V/f Control, Open/Closed Loop Vector, Permanent Magnet Motor Control |
| Output Frequency Range | Adjustable from 0.01 to 400 Hz |
| Voltage Fluctuation Tolerance | -15% to +10% |
| Frequency Stability | ±0.01% (digital input), ±0.1% (analog input) |
| Braking Function | Integrated braking transistor, supports external braking resistor |
| Cooling System | Heat sink with thermal protection |
| Environmental Limits | Operates in -10°C to +40°C (IP20/NEMA 1), -10°C to +50°C (IP00) |
| Mounting & Enclosure | Available in IP00 and IP20/NEMA 1 configurations |
| Brand | Yaskawa |
