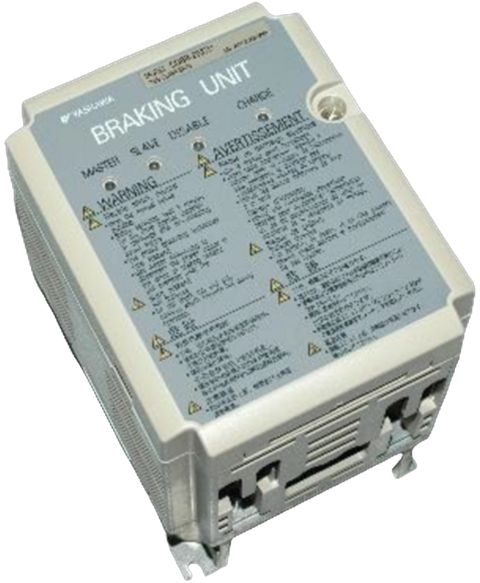

Yaskawa CDBR-4220D
The Yaskawa CDBR-4220D is a dynamic braking unit designed to manage motor control effectively. This unit features short circuit protection through transistor detection and operates on a supply voltage of 400 V.
This Yaskawa CDBR-4220D is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Accessories > Braking units range and is referenced internally as PartLogic SKU PL27071766463.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Yaskawa |
| Product Line | Varispeed |
| Part Number | CDBR-4220D |
| Weight | 16.56 lbs (7.51 kg) |
| Short Circuit Protection | Transistor short detection |
| Mounting Type | Open Chassis (IP00) |
| Cooling Method | Air-cooled |
| Operating Temperature | -10°C to 50°C |
| Humidity Range | 5% to 95% non-condensing |
| Insulation Class | Class F |
| Certifications | UL, CE, RoHS |
| Supply Voltage | 400 V |
| Rated Discharge Amps | 15 to 80 A |
| Max Discharge Amps | 250 A |
| Max Motor Capacity | 220 kW (300 HP) |
| Braking Activation Voltage | 10 switching steps |
| Brand | Yaskawa |
