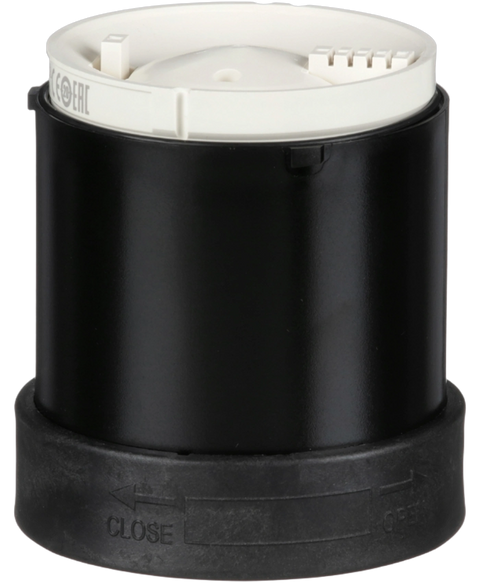

Telemecanique XVBC9B
Audio warning device, harmony xvb series, 12-48VAC,dc, alarm unit, 70-90 db at 1m, 70mm base, intermittent,continuous, for modular tower lights, plastic, 70mm mounting diameter, -25 to +50 degree c
This Telemecanique XVBC9B is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Signaling > Beacons range and is referenced internally as PartLogic SKU PL26801466443.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Harmony XVB Universal |
| Product or component type | Indicator bank |
| Beacon or indicator bank unit type | Audible unit |
| Mounting diameter | 70 mm |
| Component name | XVBC |
| Noise level | 70…90 dB at 1 m |
| [Us] rated supply voltage | 12...48 V AC/DC |
| Signalling type | Continuous or intermittent buzzer |
| Assembly style | Customer assembly, up to 5 units |
| Connections - terminals | Screw clamp terminals, <= 1 x 1.5 mm² with cable end |
| [Ui] rated insulation voltage | 250 V conforming to IEC 60947-1 |
| Nominal voltage limit | 0.85...1.1 Un conforming to IEC 60947-5-1 |
| Current consumption | < 15 mA |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to IEC 60947-1 |
| Fundamental frequency | 2.8 kHz |
| CAD overall width | 70 mm |
| CAD overall height | 63 mm |
| CAD overall depth | 70 mm |
| Net weight | 0.17 kg |
| Product certifications | CCC | EAC | CSA C22-2 No 14 | UL 508 |
| Standards | IEC 60947-5-1 |
| Protective treatment | TC |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -25…50 °C |
| Electrical shock protection class | Class I on support tube conforming to IEC 61140 | Class II on base unit conforming to IEC 61140 |
| IP degree of protection | IP65 on fixing base XVBZ0. conforming to IEC 60529 | IP66 on base unit conforming to IEC 60529 |
| NEMA degree of protection | Type 4X conforming to UL (indoor) |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.800 cm |
| Package 1 Width | 8.000 cm |
| Package 1 Length | 9.600 cm |
| Package 1 Weight | 164.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 36 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 6.580 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 288 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 60.284 kg |
