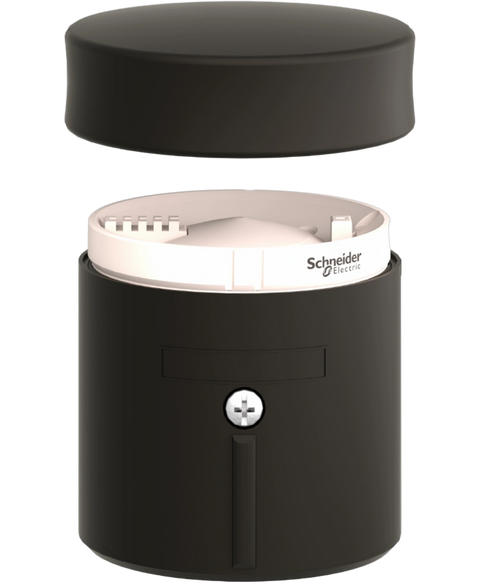

Telemecanique XVBC21
Discontinued by manufacturer, indicating bank, for harmony xvb 70mm tower lights, base unit and cap, direct , tube mount, bottom , side cable entry
This Telemecanique XVBC21 is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Signaling > Beacons range and is referenced internally as PartLogic SKU PL26909692672.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Harmony XVB Universal |
| Product or component type | Base unit with cover |
| Component name | XVBC |
| Material | Glass reinforced polyamide: base unit | Polycarbonate: cover unit |
| fixing mode | Direct or tube fixing |
| Mounting diameter | 70 mm |
| Product destination | Banks without flash discharge tube unit |
| Electrical connection | 1 connector for standard input |
| cable entry | Bottom or side entry |
| Assembly style | Customer assembly, up to 5 units |
| Terminals description ISO n°1 | (GND)GROUND | (COM-1)PW | (COM-4)PW | (COM-3)PW | (COM-5)PW | (COM-2)PW |
| Net weight | 0.19 kg |
| Product certifications | CCC | EAC | CSA C22-2 No 14 | UL 508 |
| Standards | IEC 60947-5-1 |
| Protective treatment | TC |
| Ambient air temperature for storage | -40…70 °C |
| NEMA degree of protection | Type 4X conforming to UL (indoor) |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.500 cm |
| Package 1 Width | 10.000 cm |
| Package 1 Length | 9.500 cm |
| Package 1 Weight | 206.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 36 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 8.173 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 288 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 71.516 kg |
