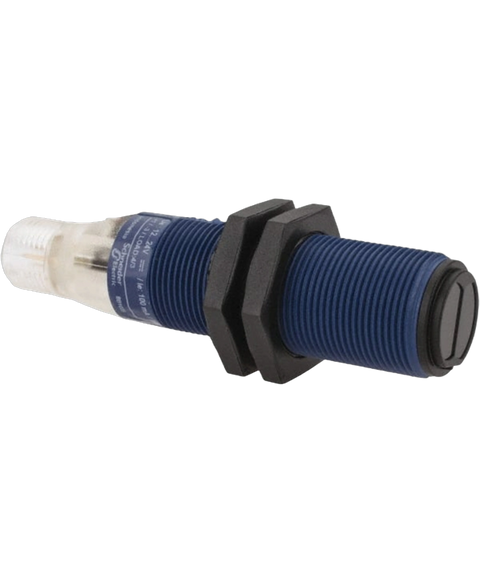

Telemecanique XUB5APANM12
Photoelectric sensor, diffuse, supply voltage 12-24VDC, sensing range 0.6 m, discrete output 1 N,O, m12 4 pin connector, replaced by xub5apxnm12
This Telemecanique XUB5APANM12 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Photoelectric sensors range and is referenced internally as PartLogic SKU PL26805546486.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Approvals | CSA, UL |
| Body Material | PBT |
| Connector Type | Connector |
| Length | 76 mm |
| Max Operating Temperature | 55 °C |
| Max Supply Voltage (DC) | 24 V |
| Min Operating Temperature | -25 °C |
| Min Supply Voltage (DC) | 12 V |
| Mount | Wire |
| Number of Pins | 4 |
| Operating Supply Voltage | 24 V |
| Output Current | 100 mA |
| Ratings | IP65, IP67 |
| REACH SVHC | No |
| RoHS | Compliant |
| Sensing Distance | 800 mm |
| Termination | Connector |
| Width | 18 mm |
