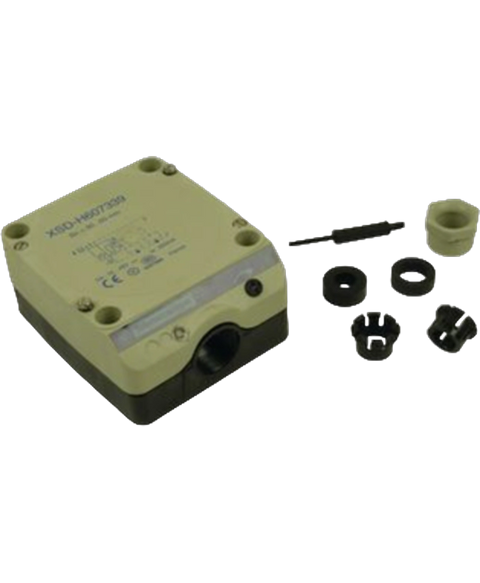

Telemecanique XSD-H607339
Inductive proximity sensor, 40-60mm sensing range, 12-48VDC, 200mA, pnp, 1no , 1nc, non flush mountable, 4-wire, screw-clamp terminals, IP67
This Telemecanique XSD-H607339 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Proximity sensors > Capacitive range and is referenced internally as PartLogic SKU PL26801426336.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Depth | 40 mm |
| Housing Material | Plastic |
| Length | 80 mm |
| Max Frequency | 50 Hz |
| Max Operating Temperature | 70 °C |
| Max Supply Voltage (DC) | 48 V |
| Min Operating Temperature | -25 °C |
| Min Supply Voltage (DC) | 12 V |
| Mount | Flush |
| Operating Supply Voltage | 48 V |
| Ratings | IP67 |
| REACH SVHC | Unknown |
| RoHS | Compliant |
| Sensing Distance | 60 mm |
| Sensing Method | Inductive |
| Switching Current | 200 mA |
| Termination | Screw |
| Width | 80 mm |
